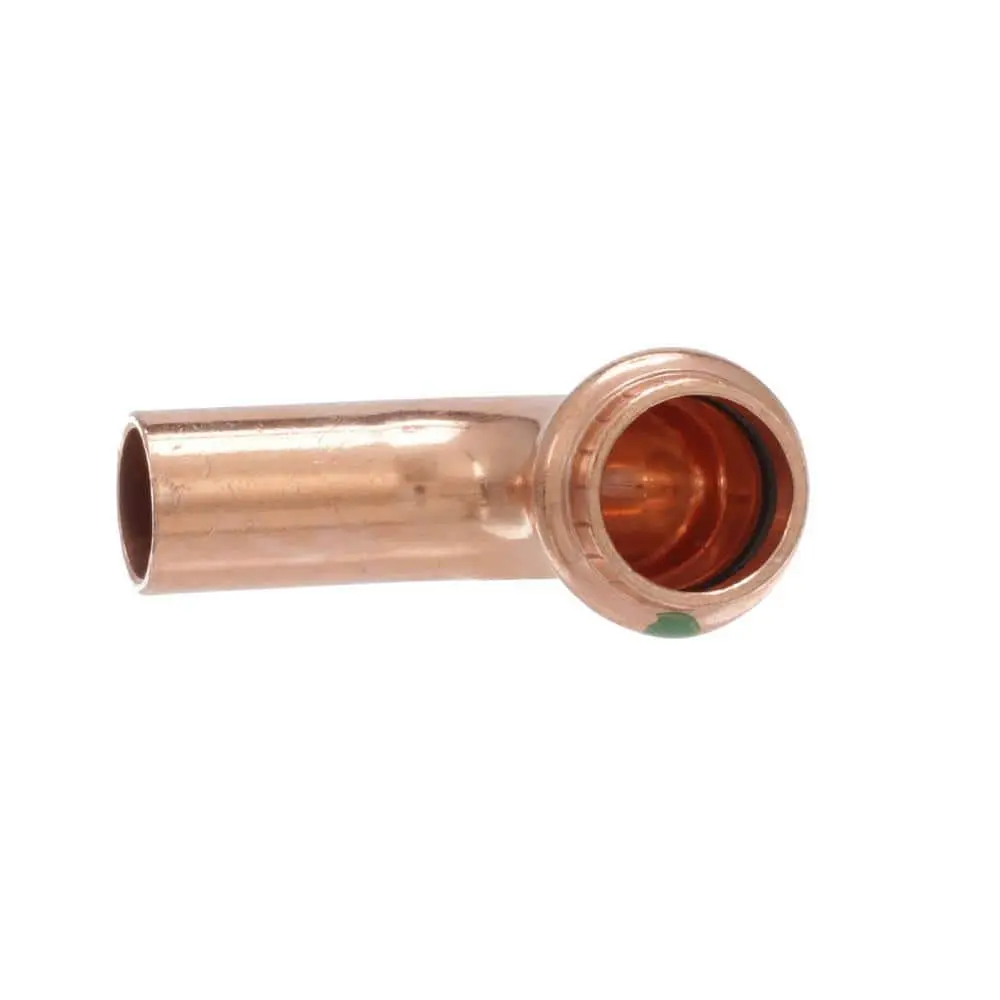

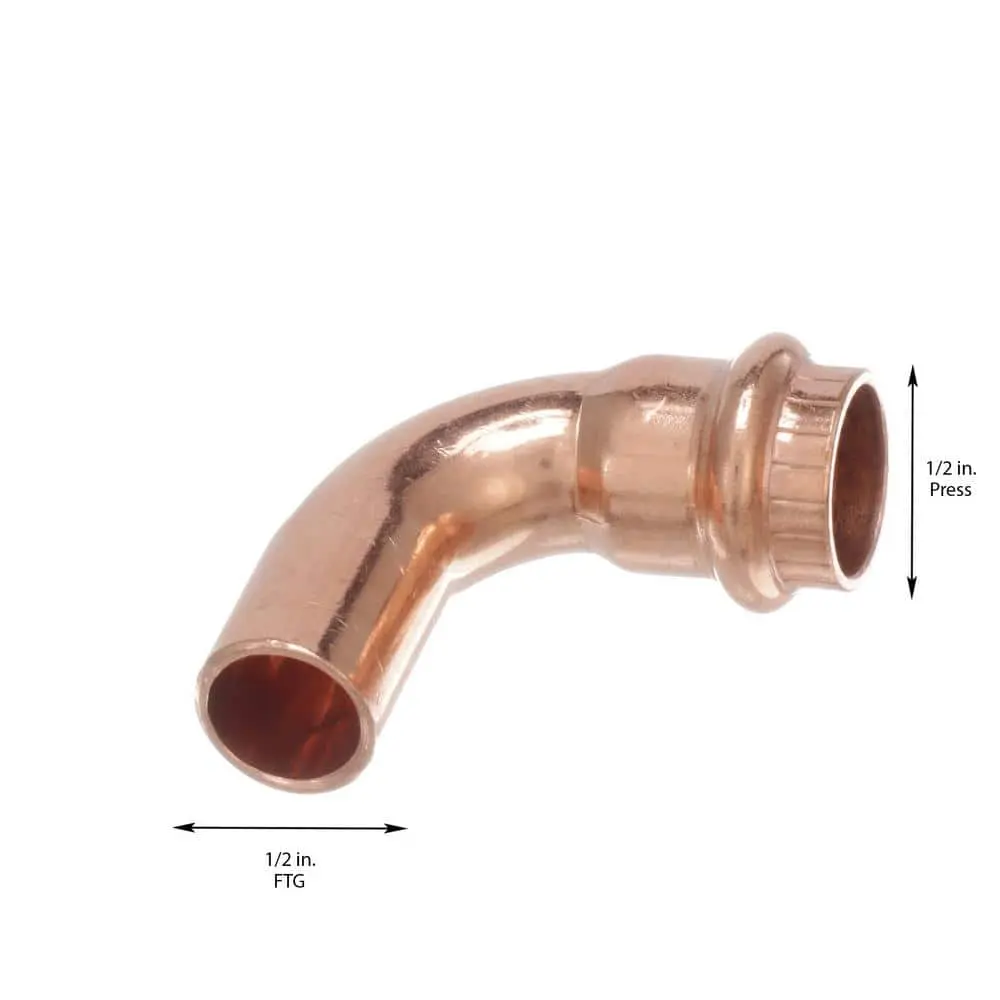

ViegaProPress 1/2 in. Press x 1/2 in. FTG Copper 90° Street Elbow (77406)

About This Product
The ProPress copper 90° street elbow provides a secure connection for tubes and is designed for use with ASTM B88 and B75 copper tubing. This fitting offers greater flexibility in tight spaces, allowing for easy and efficient installation without the need for calibration, flame, or heavy equipment. The installation process is quick and simple: cut the copper tube to size, remove any burrs, measure and mark the fitting depth, and use a press tool to secure the connection. Viega’s Smart Connect technology ensures a proper connection by identifying unpressed fittings during pressure testing. Approved to meet the most stringent codes and standards (including IPC, UPC, and NSF), Viega ProPress street elbows are trusted by professionals worldwide for their reliability and performance.

Highlights

• Designed for 1/2-in. ASTM B88 and B75 copper tubing (not compatible with PEX).
• Ideal for potable water, hydronics, and other systems.
• Installs in 7 seconds or less using a press tool—no flame, solder, or flux required.
• Viega Smart Connect technology identifies unpressed fittings during pressure testing.
• Wet or dry connections for quick repairs on existing systems.
• Eliminates the need for burn permits or fire watch.
• Internal EPDM rubber seals ensure watertight connections.
• Rated for 0-250°F, up to 300 PSI for water applications.
• Zero-lead solution certified under NSF-61-372.
• NSF/ANSI 61-G and 372 certified.
