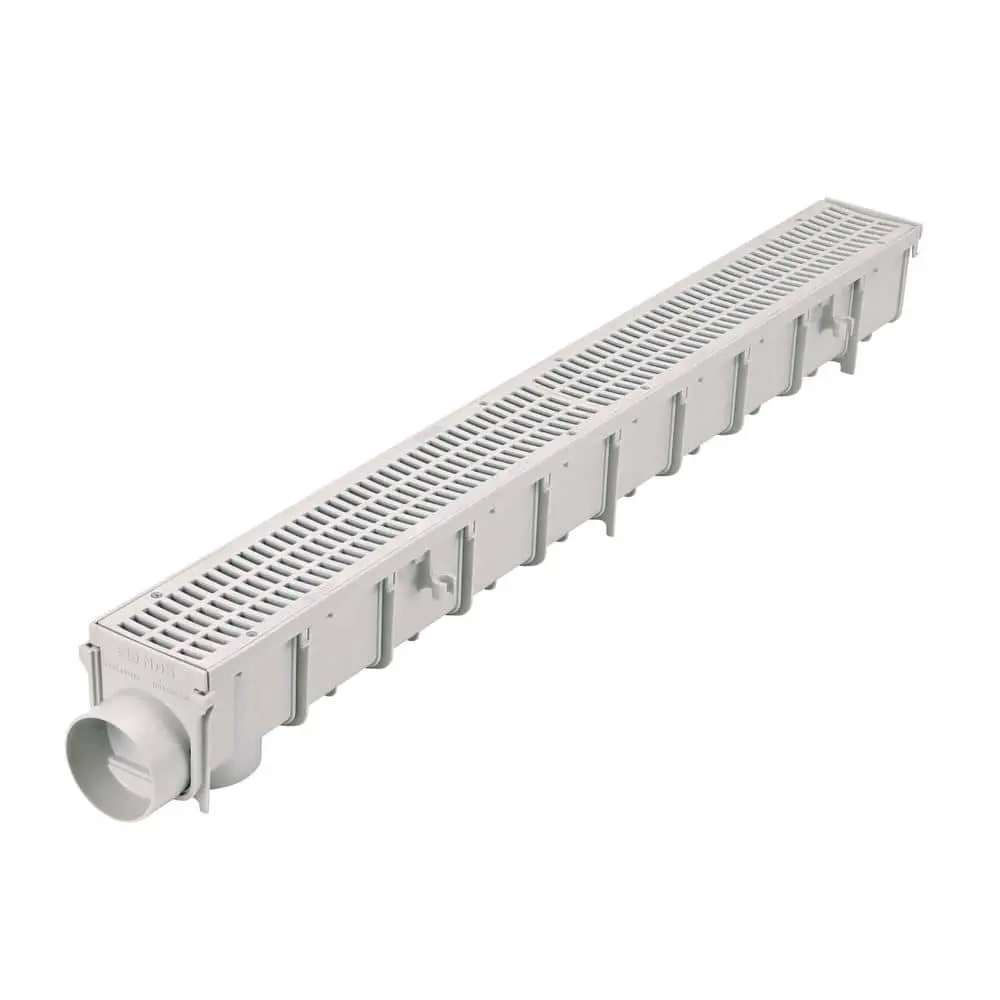

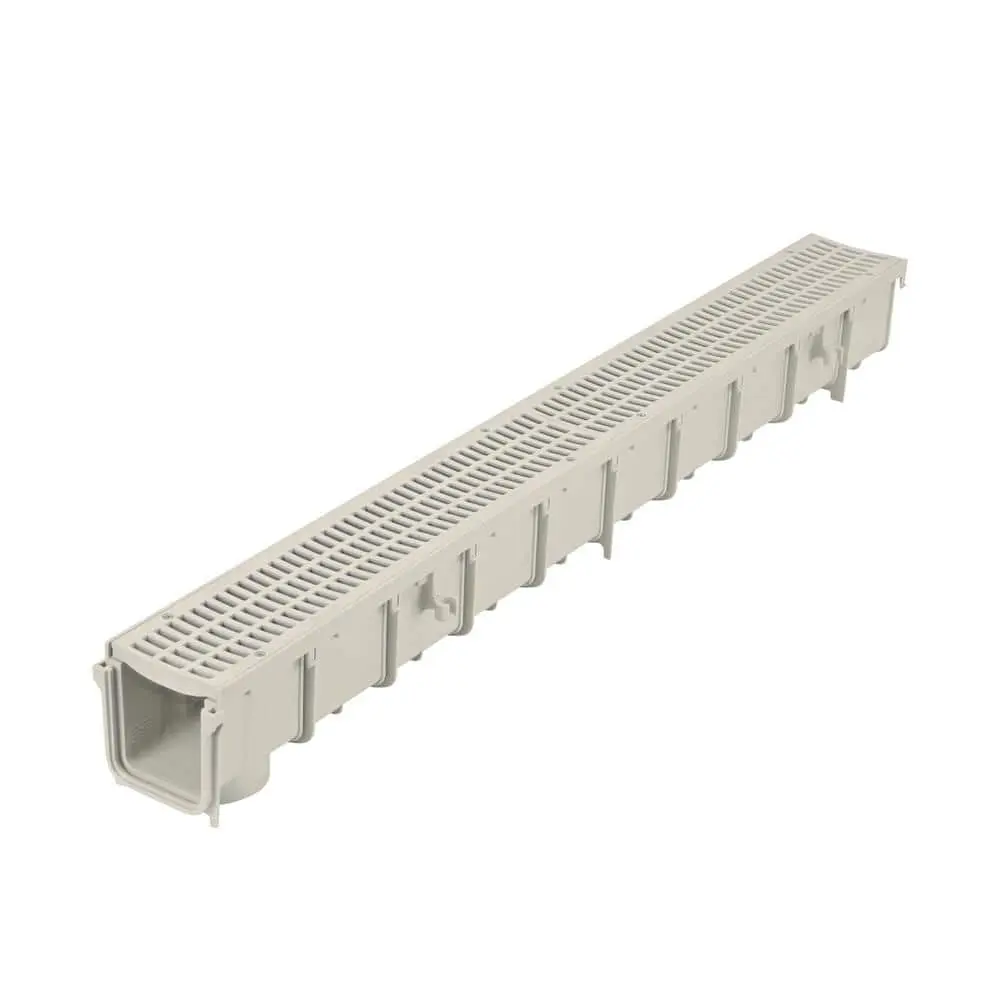

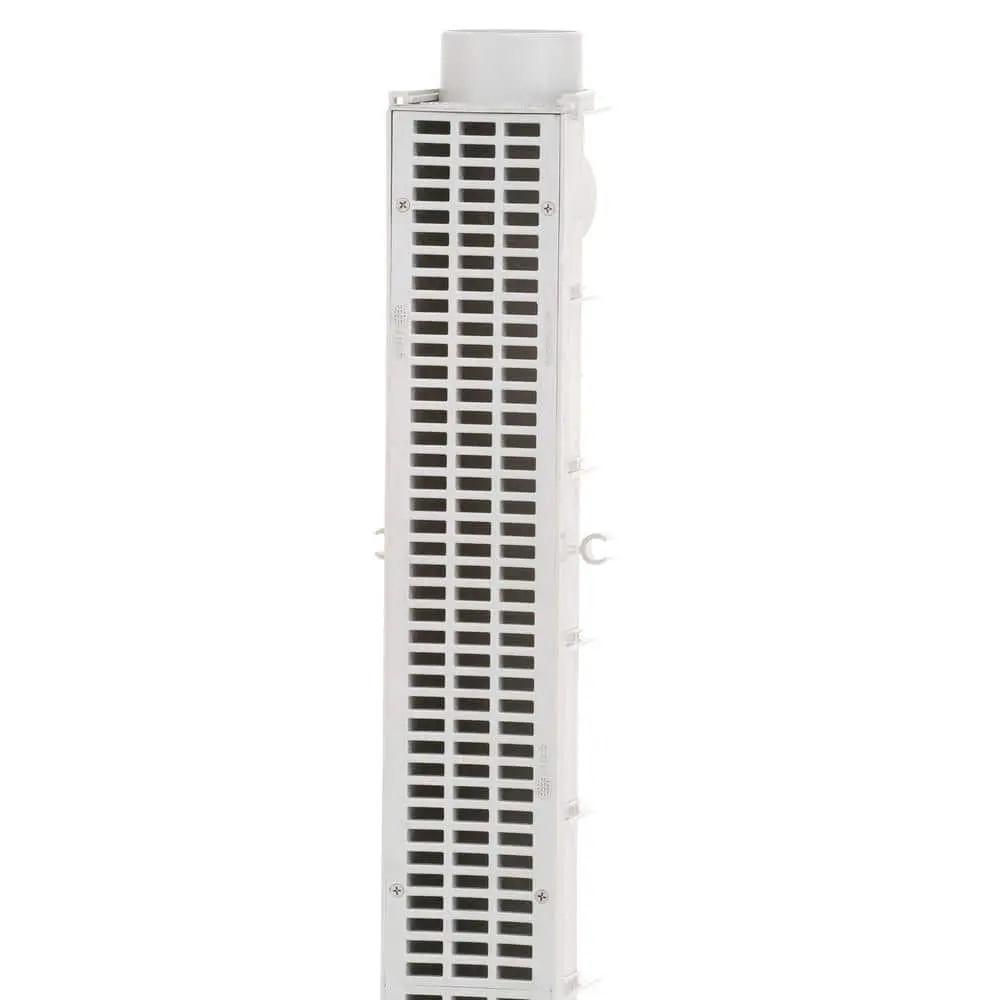

NDS Pro Series 3 in. x 40 in. Plastic Channel Drain Kit with Grate (764)

About This Product

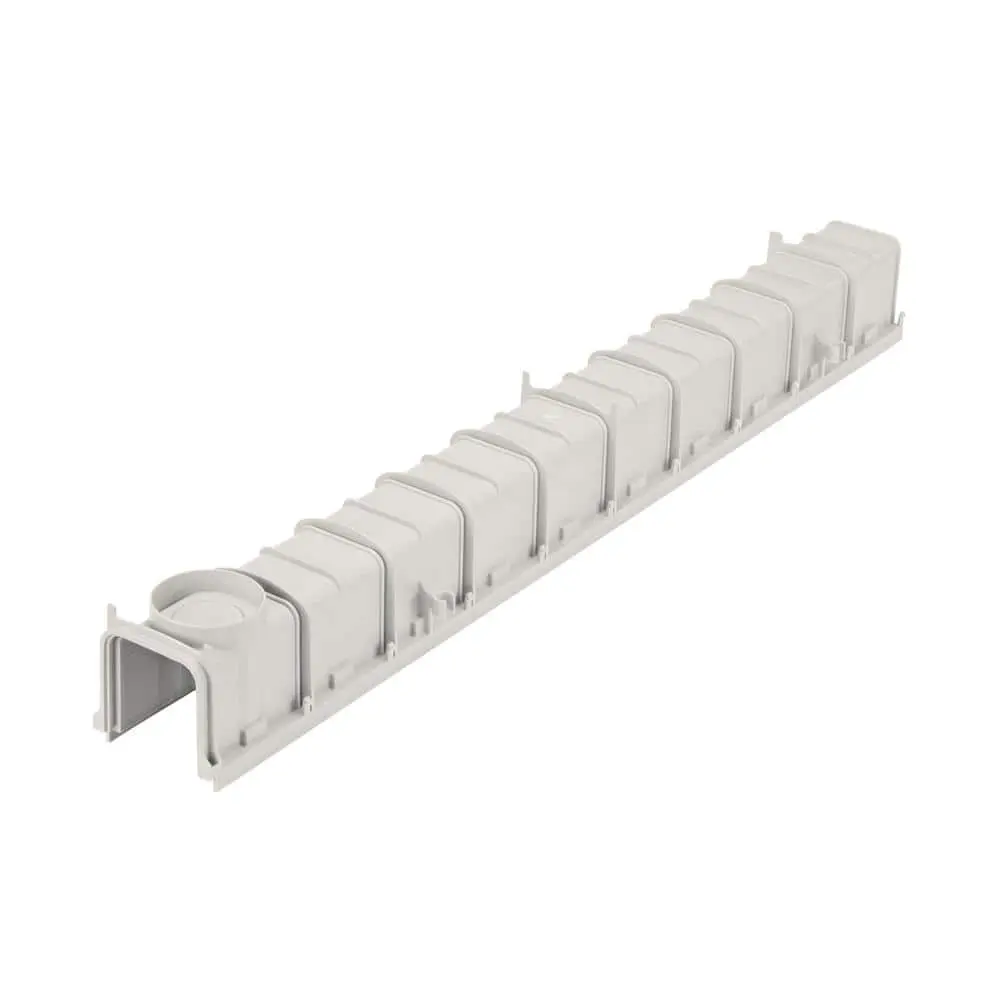

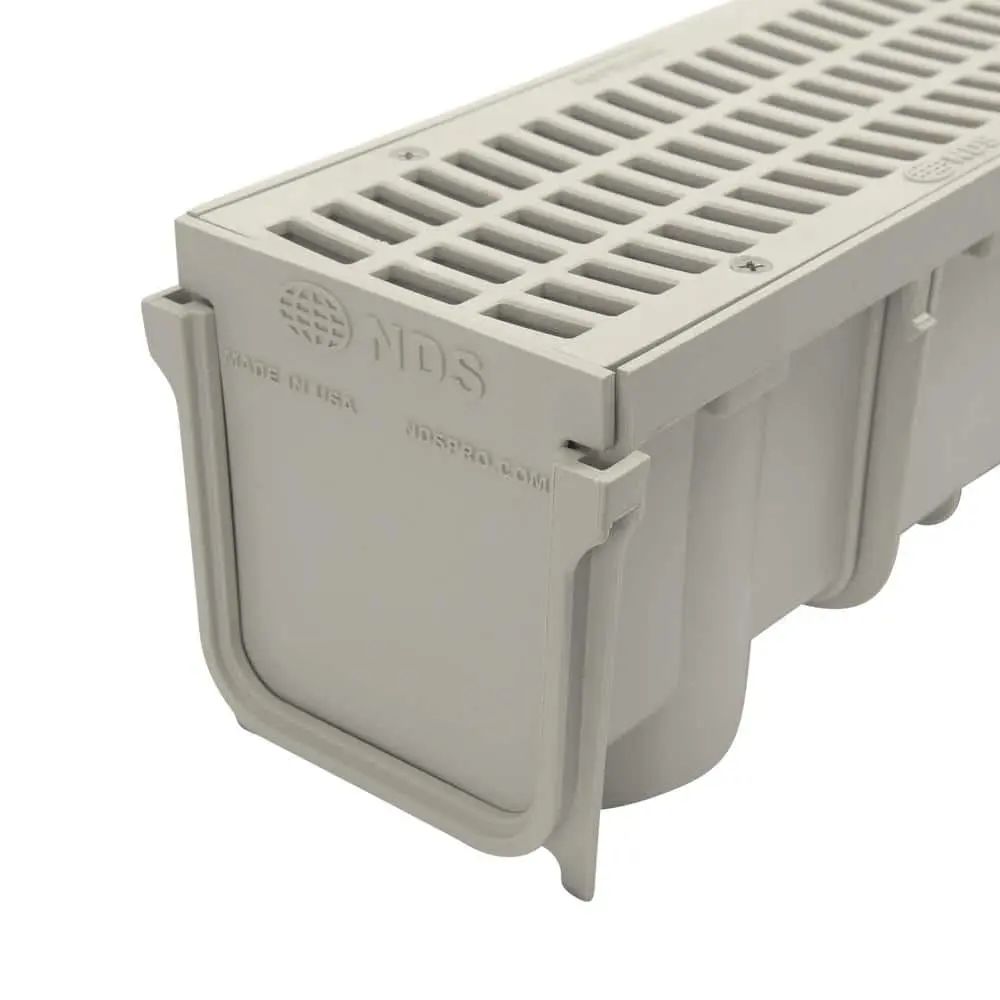

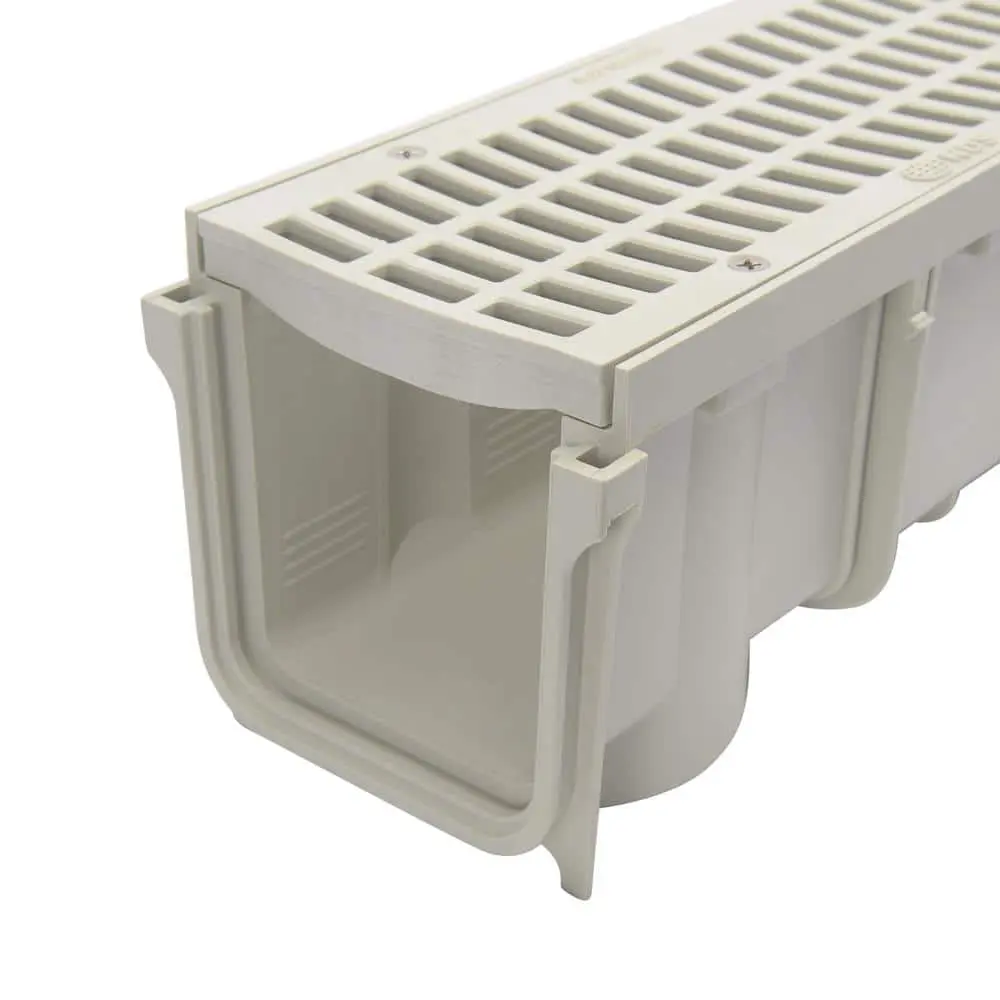

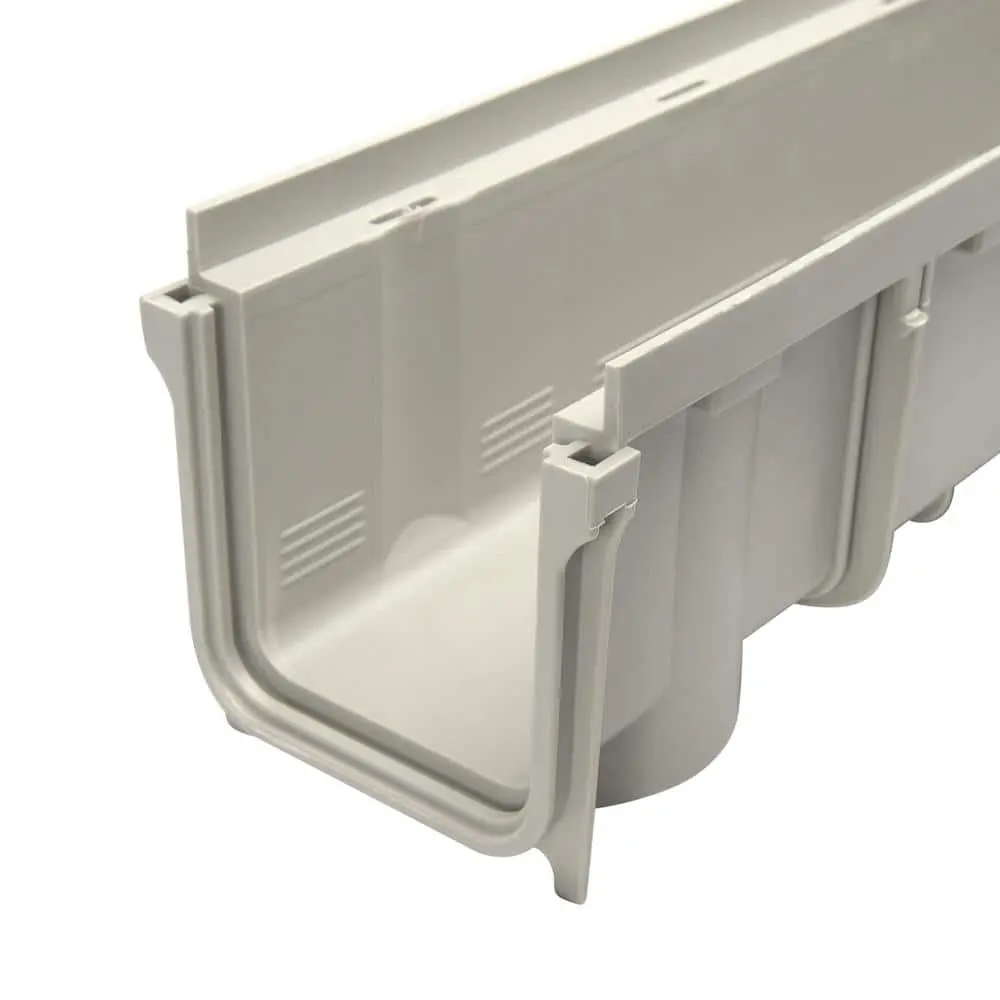

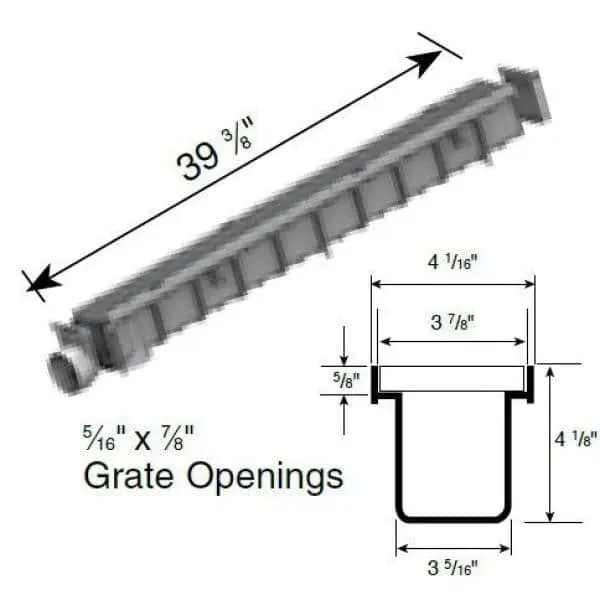

Prevent water damage to your property with the 3 in. Pro Series Channel Drain, designed to effectively manage moderate water flows on surfaces such as driveways, patios, courtyards, and walkways. The multipack includes three 3 in. Pro Series Channel Drain Kits, each featuring a 4-1/8 in. deep polypropylene channel with a bottom outlet, gray polyethylene grate, end cap/outlet, and end cap. With a modular design and interlocking joints, these channels connect easily for longer runs and can be cut to fit lengths as short as 4 in. Using the saw guide provided. Channel drains, or trench drains, are long, narrow solutions for collecting and redirecting surface water to drain pipes that carry water downstream, either to discharge via a pop-up emitter or to absorb into the ground through a dry well or infiltration trench. NDS channel drains are a reliable, durable alternative to traditional concrete drainage solutions.

Highlights

• Effectively manage surface water, preventing mildew growth, concrete staining, and costly structural damage
• Ideal for draining moderate flows from driveways, patios, courtyards, and walkways
• Modular, interlocking design allows for easy connections and customization; can be cut to lengths as short as 4 in.
• 23.6 sq. in. per linear ft. open surface area with a flow rate of 77 GPM per ft.
• Suitable for medium-duty traffic, including cars and light trucks (up to 175 psi, recommended for speeds under 20 mph)
• ADA compliant

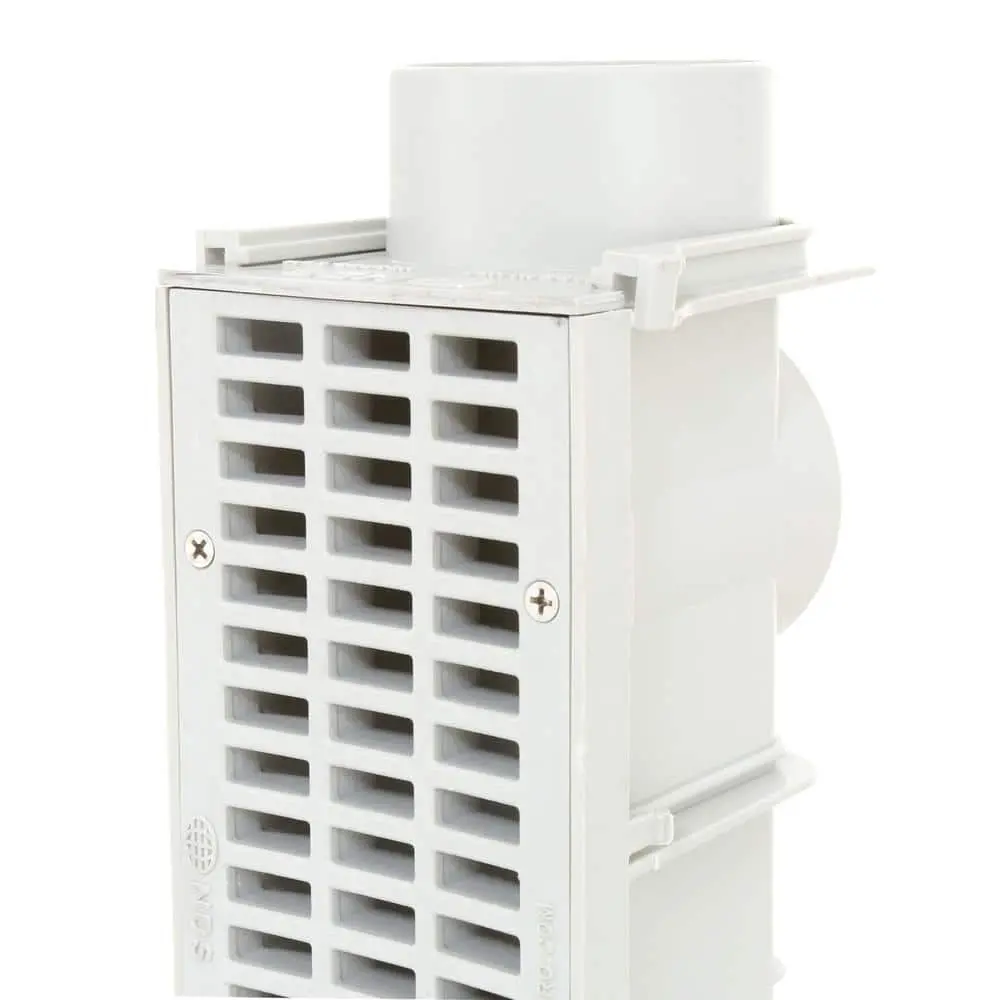

• Built-in bottom outlet connects to 3 in. sewer and drain fittings
• Durable polypropylene (PP) construction treated with UV inhibitors to prevent fading and cracking

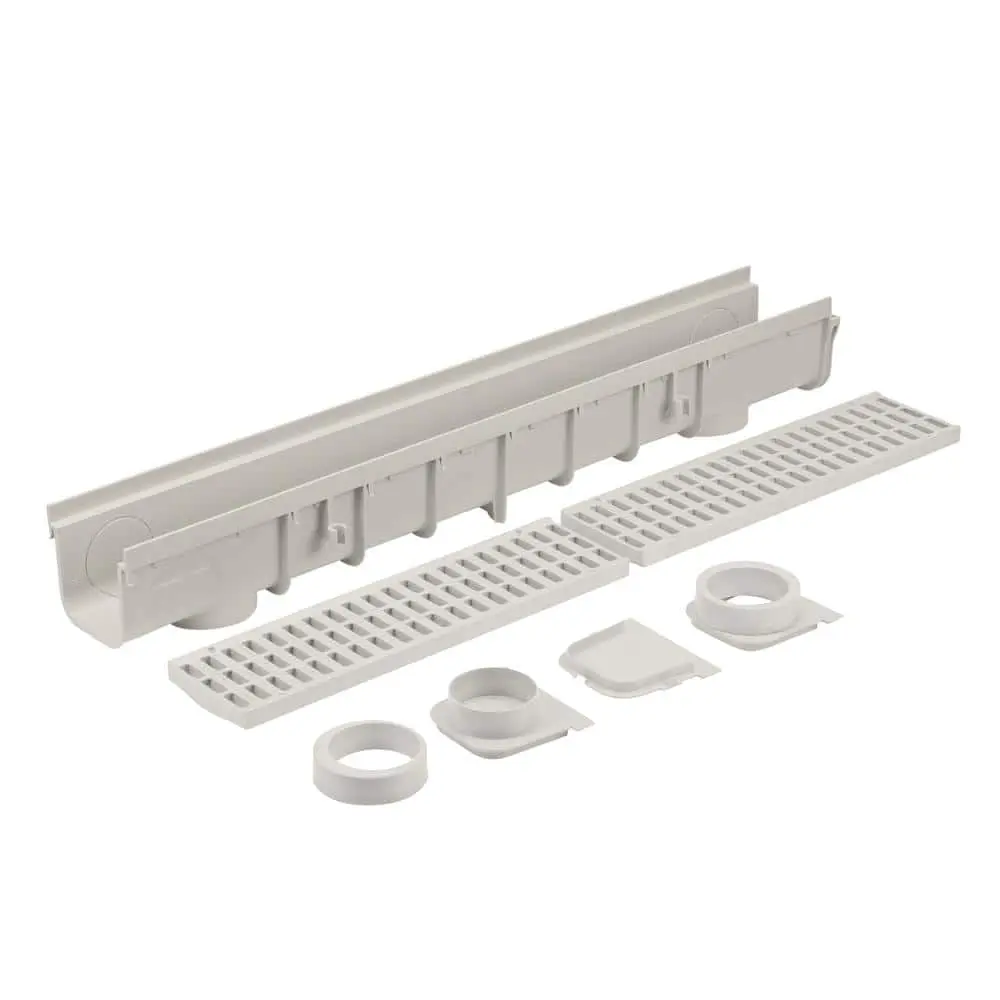

• Includes channel drain, grates, end cap, and outlet for easy installation
• Removable grates make cleaning debris easy for ongoing maintenance
• Connect additional channels for longer runs (sold separately)
• Use with a pop-up drainage emitter or dry well system to effectively manage water runoff
• Trusted by professionals, NDS is the leading supplier of channel drains in North America
