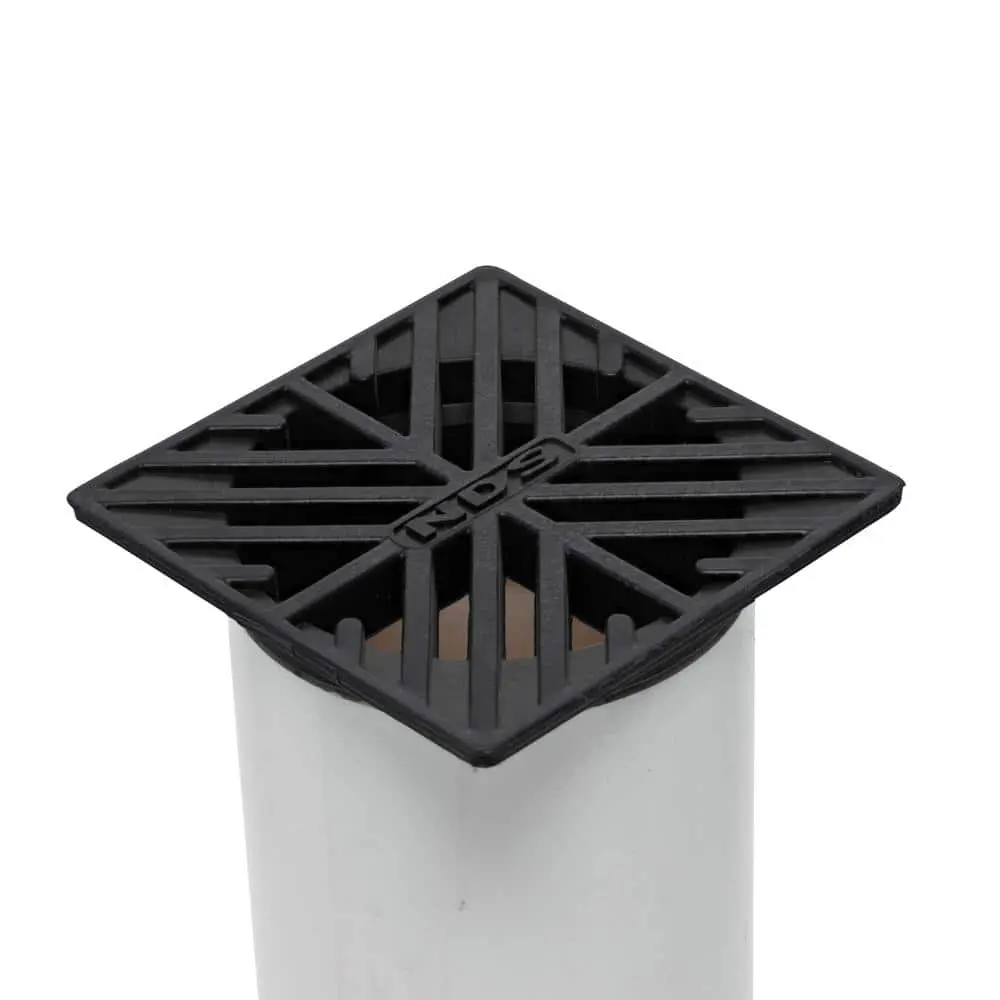

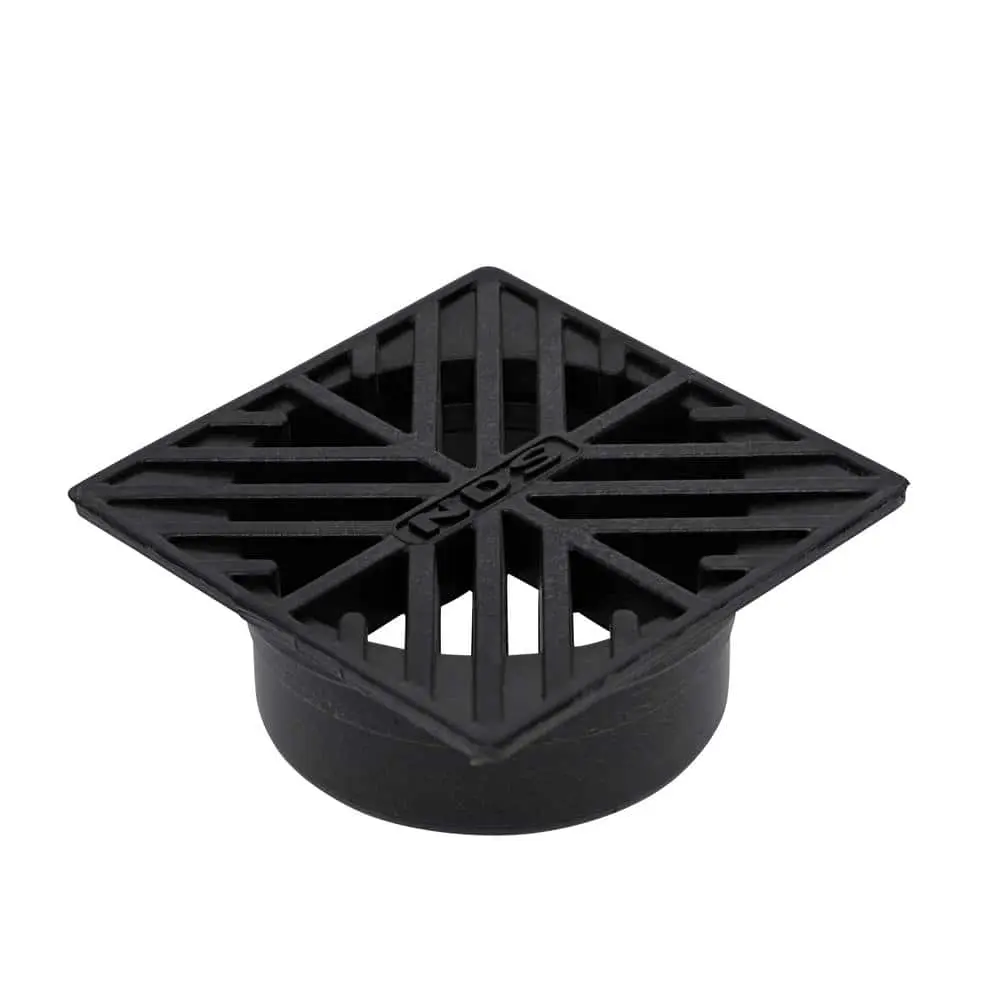

NDS 4 in. Plastic Square Drainage Grate in Black (2)

About This Product
The 4 in. Square Drain Grate serves as the first line of defense in your drainage system. This sturdy grate blocks debris, such as leaves, from entering and clogging your drainage pipes while efficiently draining light stormwater flows from small lawns, landscaped areas, patios, and walkways. With a flow rate of 11 GPM and an open surface area of 3.5 sq. in., this square grate provides superior flow capacity compared to round grates of the same pipe diameter, thanks to its flared-out design. It connects securely to 3 in. sewer and drainpipes, single-wall corrugated pipes, and triple-wall pipes, offering a soil-tight fit. Ideal for areas with limited depth for a catch basin, the grate is ADA compliant and heel-proof. Made of durable polyethylene, it is treated with UV inhibitors to prevent fading and cracking. This part of a comprehensive drainage system ensures water flows freely and prevents debris from clogging your pipes, directing excess water to a downstream discharge point, such as a pop-up emitter, dry well, or infiltration trench.

Highlights

• Protects your drainage system by blocking debris while allowing excess surface water to flow through
• Perfect for draining light water flows from small lawns, landscaped areas, patios, and walkways

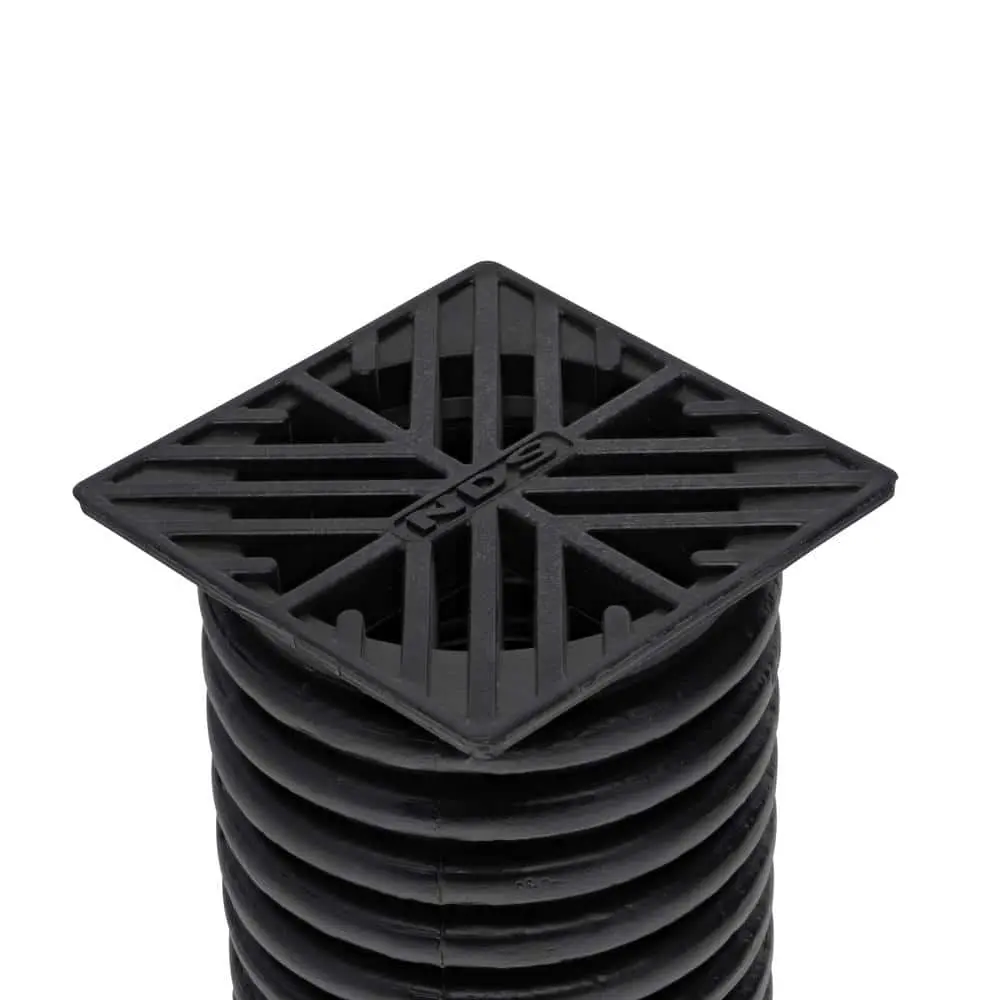

• Fits 3 in. sewer and drainpipes, 3 in. single-wall corrugated pipes, and 3 in. triple-wall pipes
• 3.5 sq. in. open surface area with an 11 GPM flow rate
• Rated for NDS class A load (up to 60 psi) when properly installed—ideal for pedestrian, bicycle, and wheelchair traffic; ADA compliant and heel-proof
• Grate dimensions: 1-5/16 in. high, 3-9/16 in. square with 3/16 in. wide openings
• Available in a variety of colors
• Includes one 4 in. square grate
• Designed to work with connected drainpipe to capture and convey surface water downstream
• High-density polyethylene (HDPE) construction with a blend of virgin and recycled content and UV inhibitors to prevent fading and cracking
• Use with sewer and drain fittings for turns or with a pop-up emitter for water discharge
• Can be paired with Flo-Well dry well or EZ Drain gravel-free French drain systems to detain and slowly release water into the ground
• Helps manage stormwater runoff, protecting the downstream watershed and preventing erosion, pollution, and flooding
• NDS, the leader in stormwater management, provides proven products, tools, and expert support
