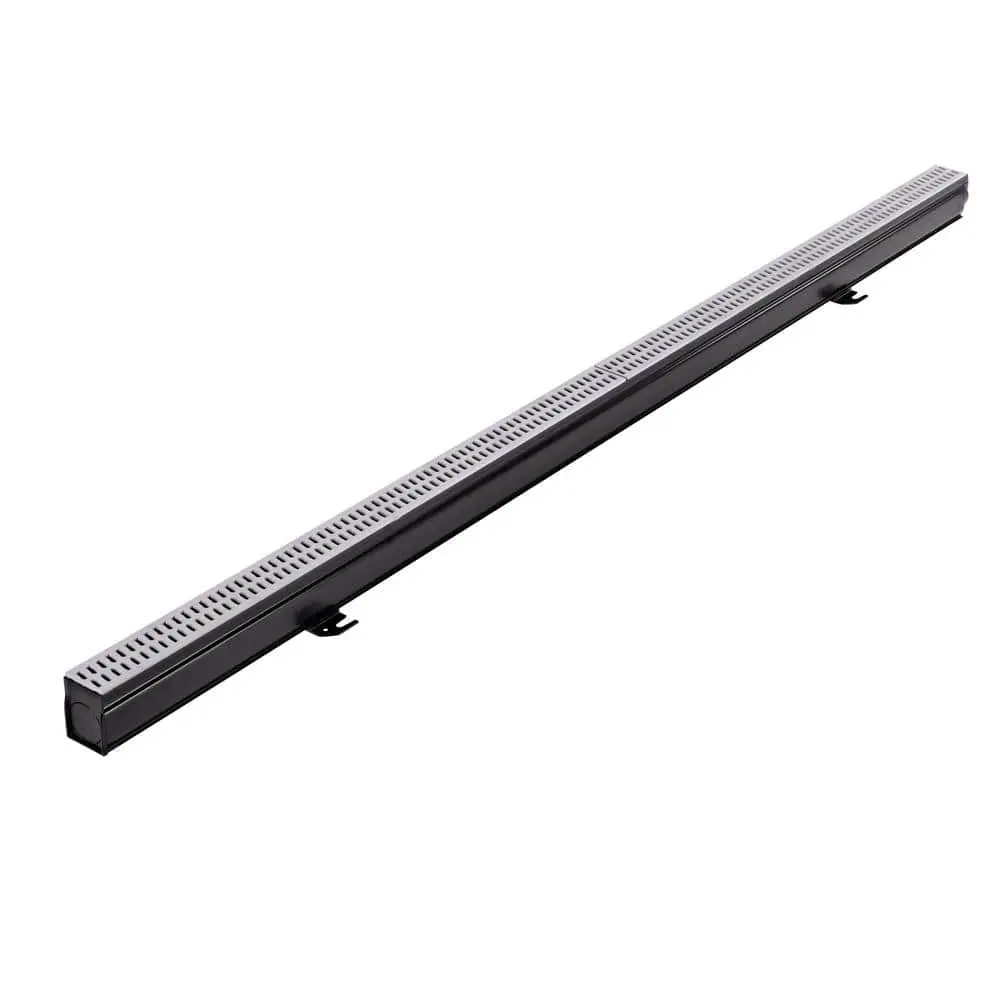

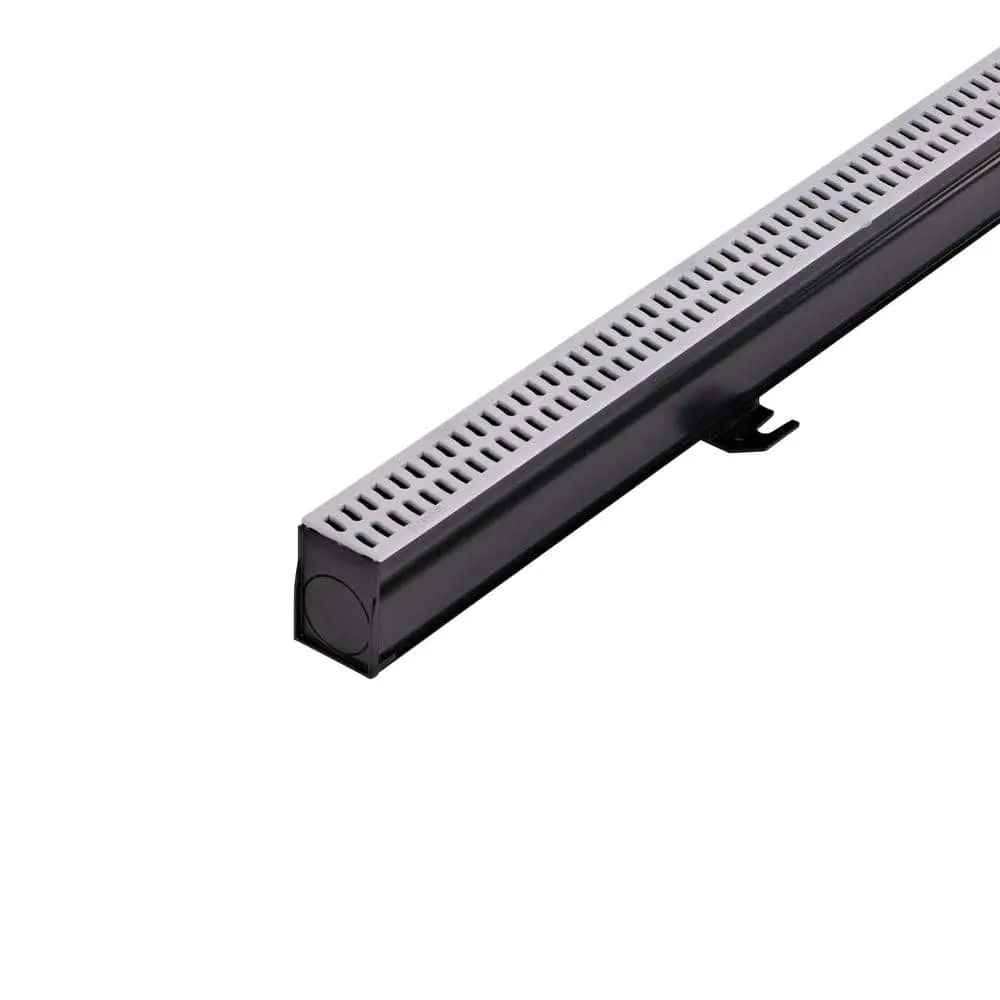

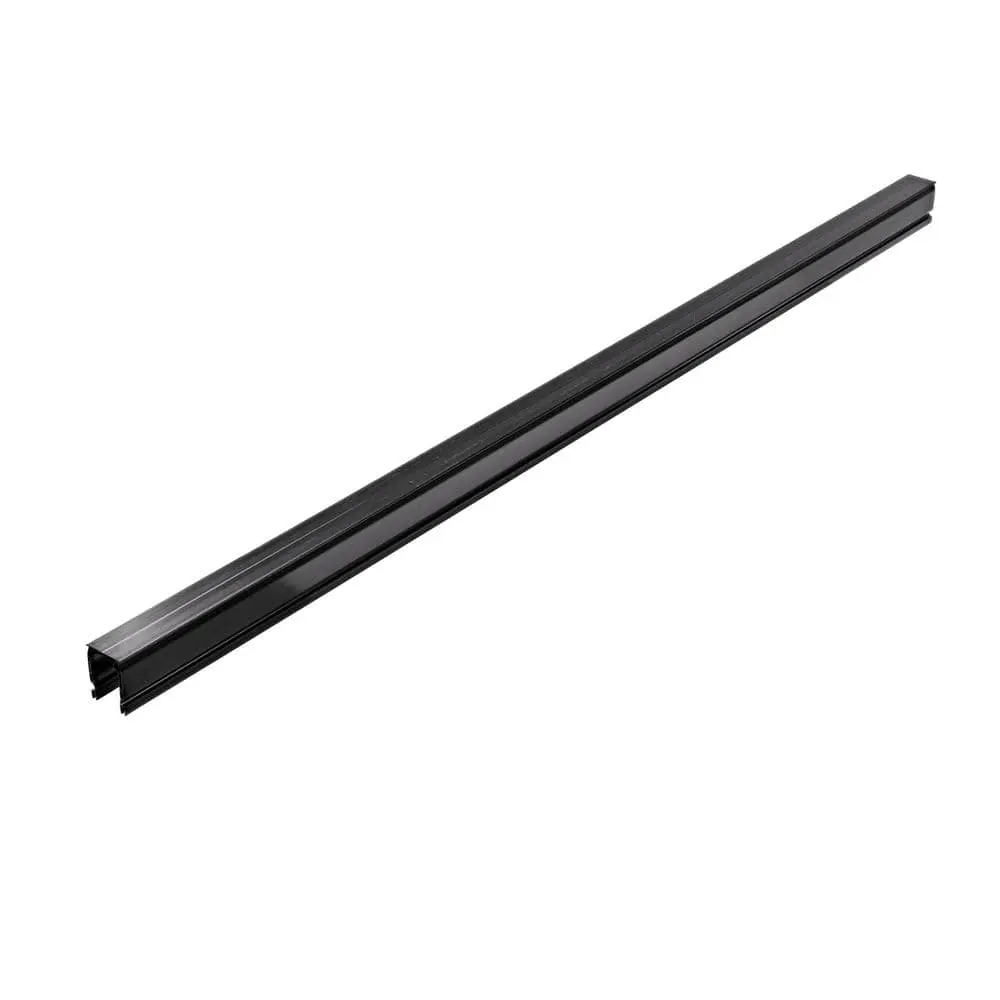

NDS 2-1/4 in. x 6 ft. Slim Channel Drain Kit Gray Grates, End Caps, Outlets, Coupling and Anchor Clips (9206GKITRTL)

About This Product
Keep your hardscapes free of excess water with an attractive and easy-to-install Slim Channel Drain from NDS. This part of the NDS Profile Channel series captures light runoff flows from pool and spa areas, patios, and walkways, preventing slippery mildew, concrete erosion, and potential property damage. Channel drains, also known as trench drains, are narrow drains designed for surface drainage on flat areas like hardscapes. As part of a complete drainage system, they direct water to drain pipes that carry it downstream, either to discharge via a pop-up emitter or percolate into the ground using a dry well or infiltration trench. The Slim Channel Drain Kit includes a preassembled polyvinyl chloride channel drain with slotted polypropylene grates, 2 end caps/outlets, 2 anchor clips, 1 coupling, and 1 bottom outlet. Solvent-weld the channel with PVC glue for a watertight connection, and the snap-in grates make it easy to clean the system. Choose the best channel drain or trench drain system for your needs with the NDS Channel Drain Selector.

Highlights

• Captures and directs excess water to prevent mildew growth, concrete staining, and costly damage
• Ideal for light water flows from pool decks, patios, and walkways
• Connects easily with couplings; bottom outlet and end caps with knock-out outlets connect to 1-1/2 in. Schedule 40 pipe
• 7.0 sq. in. open surface area per linear foot, with a 21 GPM flow rate
• Rated for NDS class A loads (up to 60 psi), suitable for pedestrians, bicycles, and wheelchair traffic; ADA compliant and heel-proof
• Slim channel dimensions: 2-1/4 in. wide, 3 in. high, and 6 ft. long (can be cut to size)
• Available in kits with sand-colored or gray grates and accessories

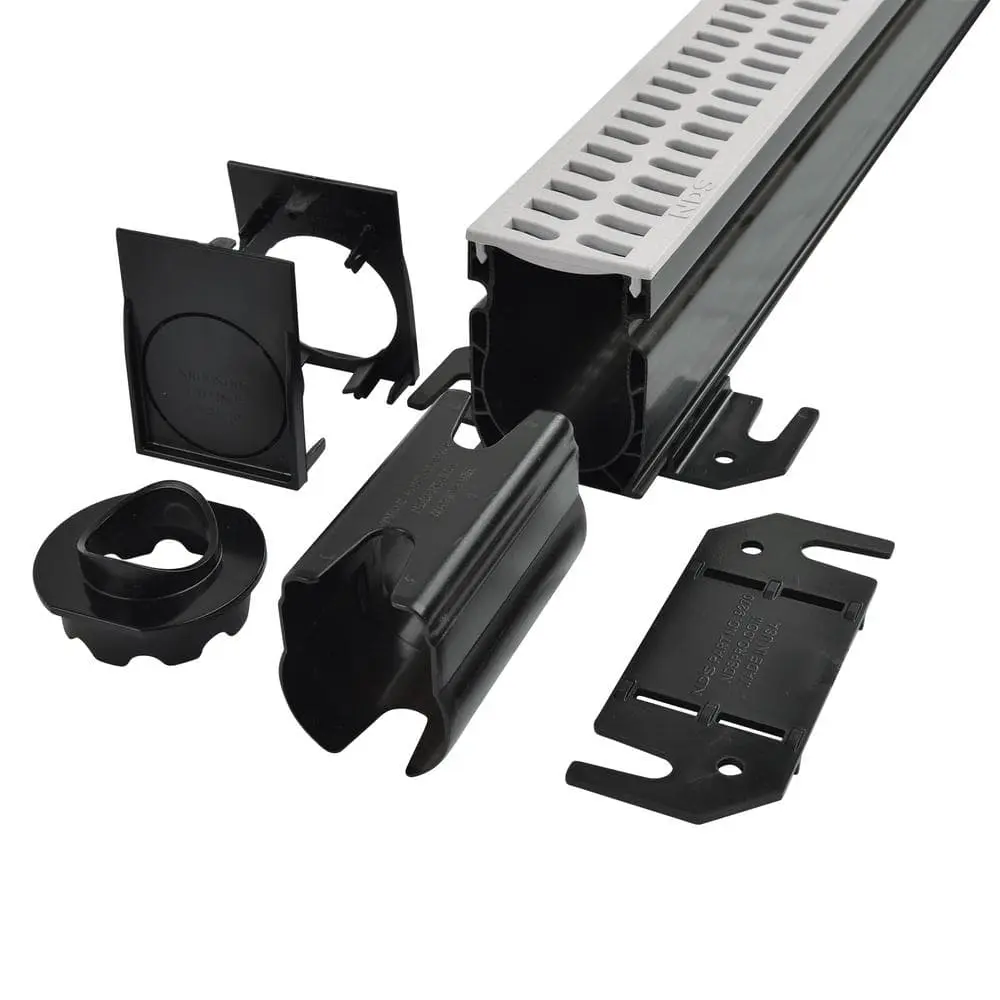

• Includes preassembled drain, grates, coupling, 2 end caps/outlets, 1 bottom outlet, and anchor clips
• Constructed from UV-treated PVC and polypropylene for durability and fade resistance
• Snap-in grates for easy maintenance and debris removal
• Customize your layout with 45° and 90° elbows and tees
• Use with a pop-up emitter or Flo-Well dry well system for effective water release
• Designed to protect downstream watersheds by managing excess runoff and minimizing erosion, pollution, and flooding
• Trusted by professionals and the largest supplier of channel drains in North America
