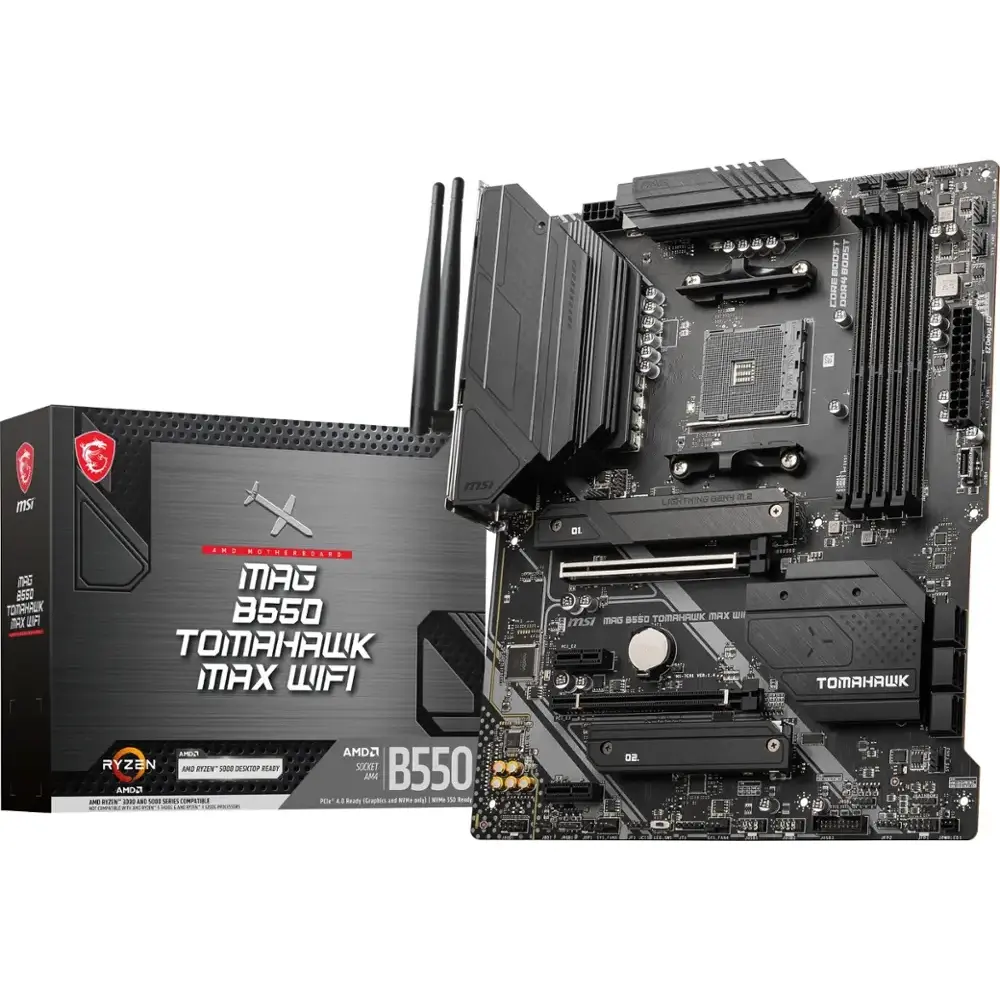

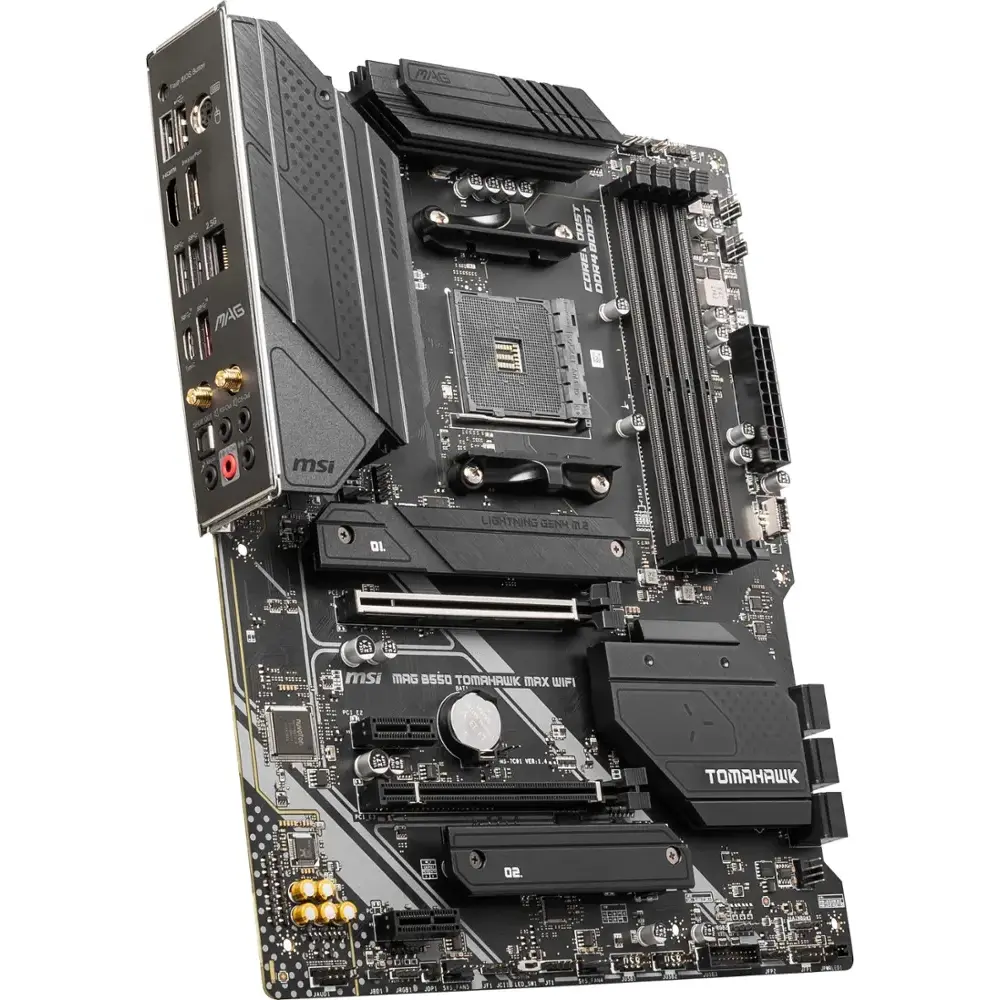

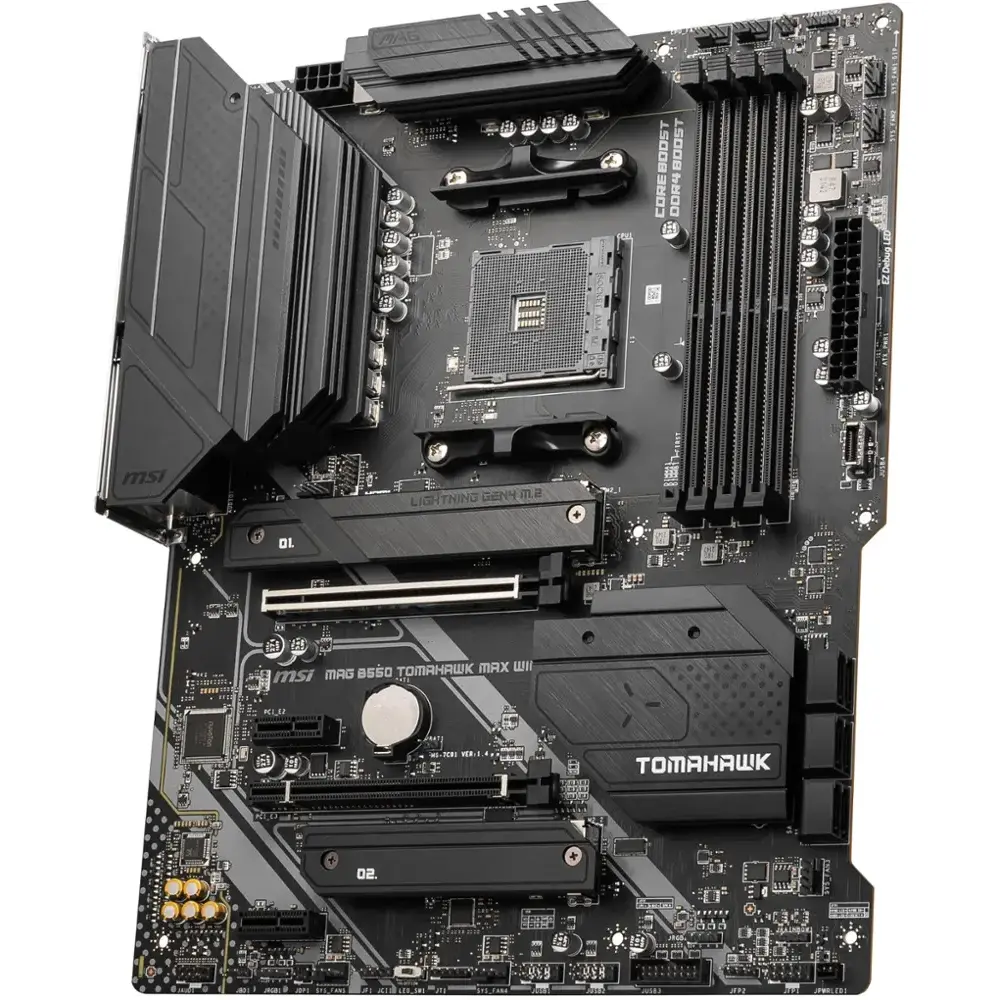

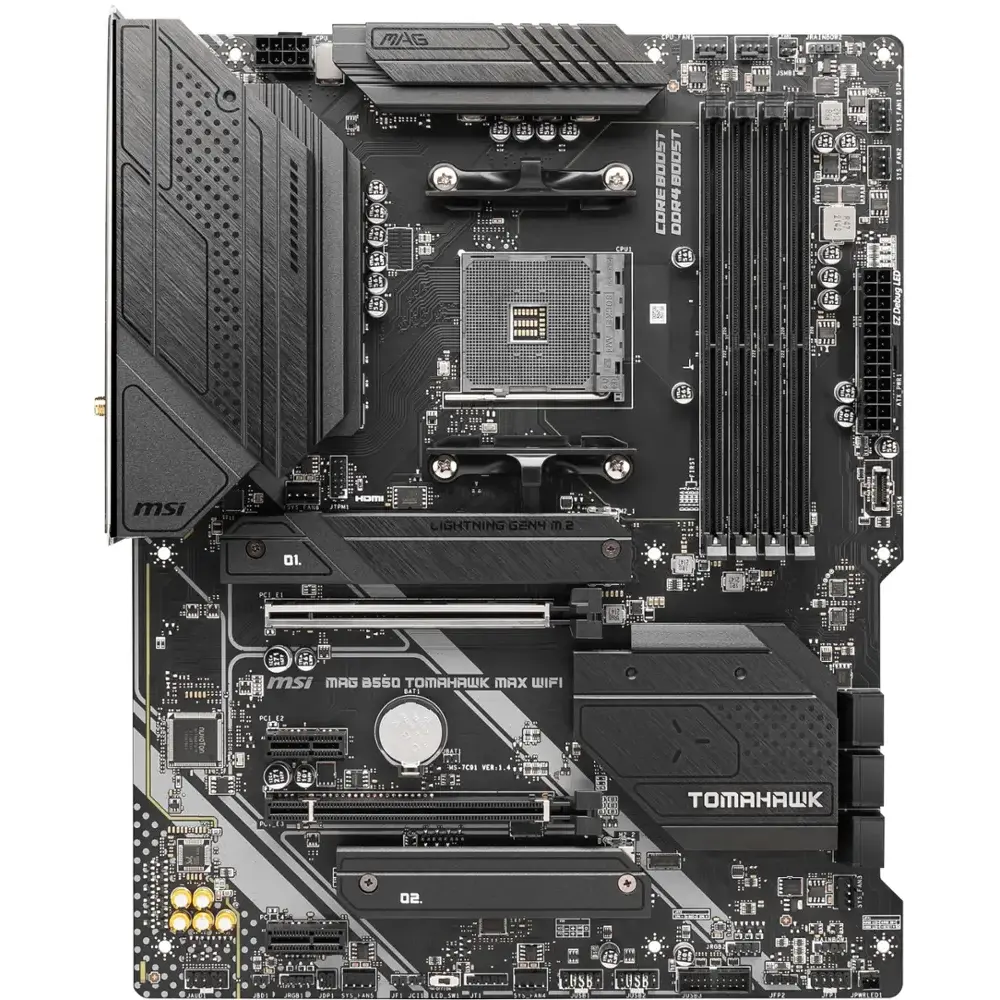

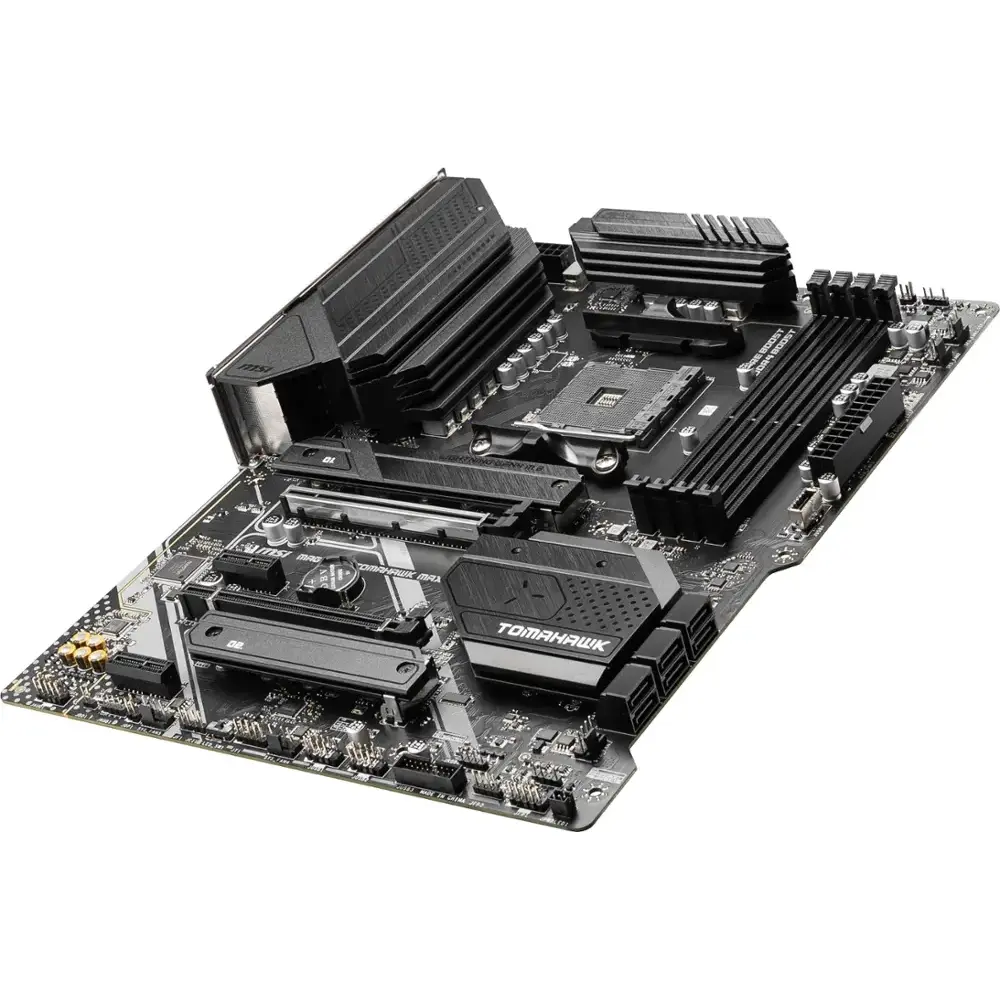

The MAG series was developed through extensive quality testing, crafted to embody strength and durability. With a focus on delivering the best user experience, the MAG series offers an easy installation process and an intuitive user interface, making it the ideal choice for beginner gamers. The MAG B550 TOMAHAWK WIFI is equipped with high-bandwidth, low-latency 2.5G plus Gigabit LAN, catering to power users. Its onboard 2.5Gbps connectivity ensures incredibly fast data transfer speeds. MSI LAN Manager intelligently classifies and prioritizes latency-sensitive applications, delivering optimal online performance with minimal lag.
Key Features:
- AMD Ryzen 7 and Ryzen Processor Support
Compatible with AM4 socket. - Memory
4 x DDR4 memory slots, supporting up to 128GB. It supports DDR4 speeds ranging from 1866MHz to 4866+ MHz, including various JEDEC and A-XMP OC modes. - Graphics
AMD CrossFireX support.

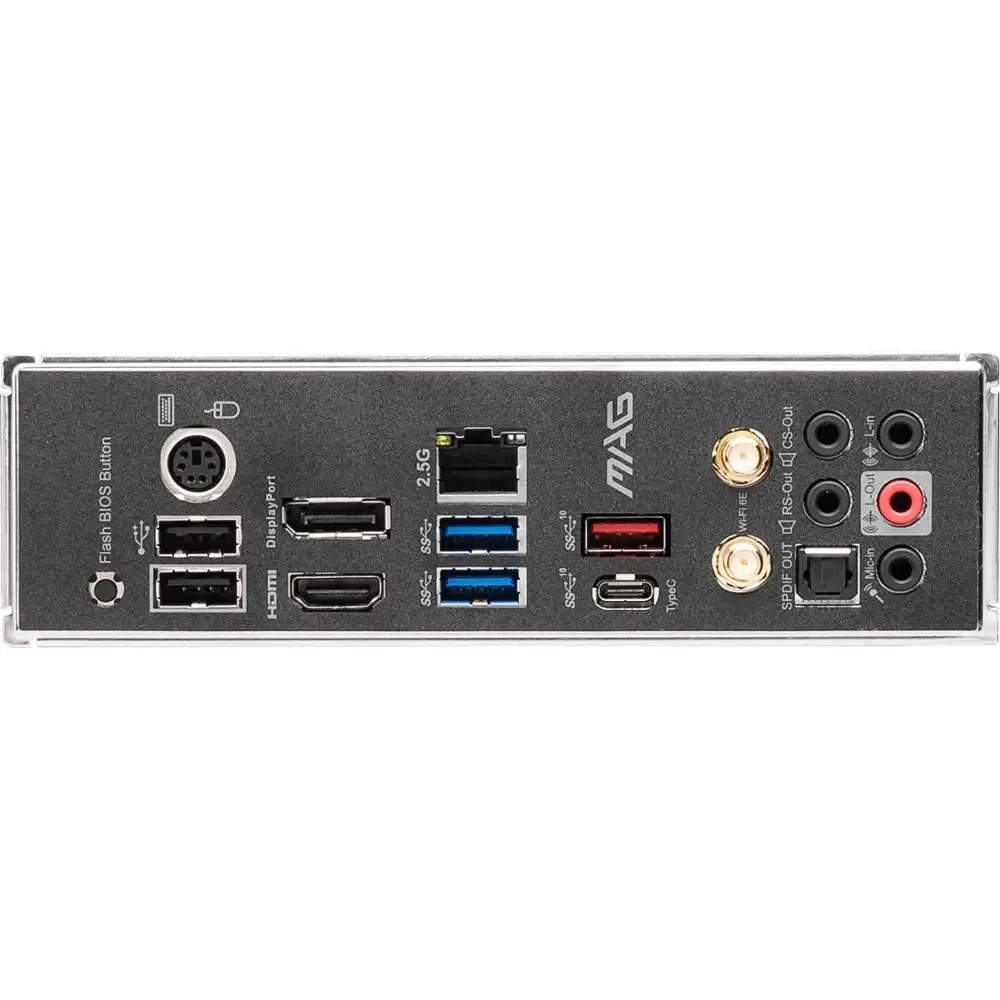

1 x HDMI 2.1 port (max resolution: 4096x2160 @60Hz)
1 x DisplayPort (max resolution: 4096x2160 @60Hz)
Shared memory up to 16GB. - Storage
6 x SATA 6Gb/s ports
2 x M.2 slots (Key M)
M2_1 slot (from AMD Processor) supports PCIe 4.0/3.0 x4, while M2_2 slot (from AMD B550 chipset) supports PCIe 3.0x4. - Audio
Realtek ALC1200 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output. - Expansion Slots
1 x PCIe 4.0/3.0 x16 slot (PCI_E1)
1 x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
2 x PCIe 3.0 x1 slots - RAID Support
Supports RAID 0, RAID 1, and RAID 10 for SATA devices
Supports RAID 0 and RAID 1 for M.2 NVMe devices. - USB Ports
3 x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, 2 internal USB 3.2 Gen 1 connectors)
6 x USB 2.0 ports (2 Type-A ports on the back panel, 4 through internal connectors) - LAN
1 x Realtek RTL8125B 2.5Gbps LAN controller
1 x Realtek RTL8111H 1Gbps LAN controller - Internal Connectors
1 x 24-pin ATX main power
1 x 8-pin ATX 12V power
6 x SATA 6Gb/s
2 x M.2 slots (M-Key)
1 x USB 3.2 Gen 1 5Gbps Type-C port
1 x USB 3.2 Gen 1 connector (supports 2 additional USB 3.2 Gen 1 ports)
2 x USB 2.0 connectors
1 x 4-pin CPU fan connector - Additional Internal Connectors
1 x 4-pin water-pump fan connector
6 x 4-pin system fan connectors
1 x Front panel audio connector
2 x System panel connectors
1 x Chassis Intrusion connector
2 x 4-pin RGB LED connectors
2 x 3-pin RAINBOW LED connectors
1 x TPM module connector
1 x Clear CMOS jumper
