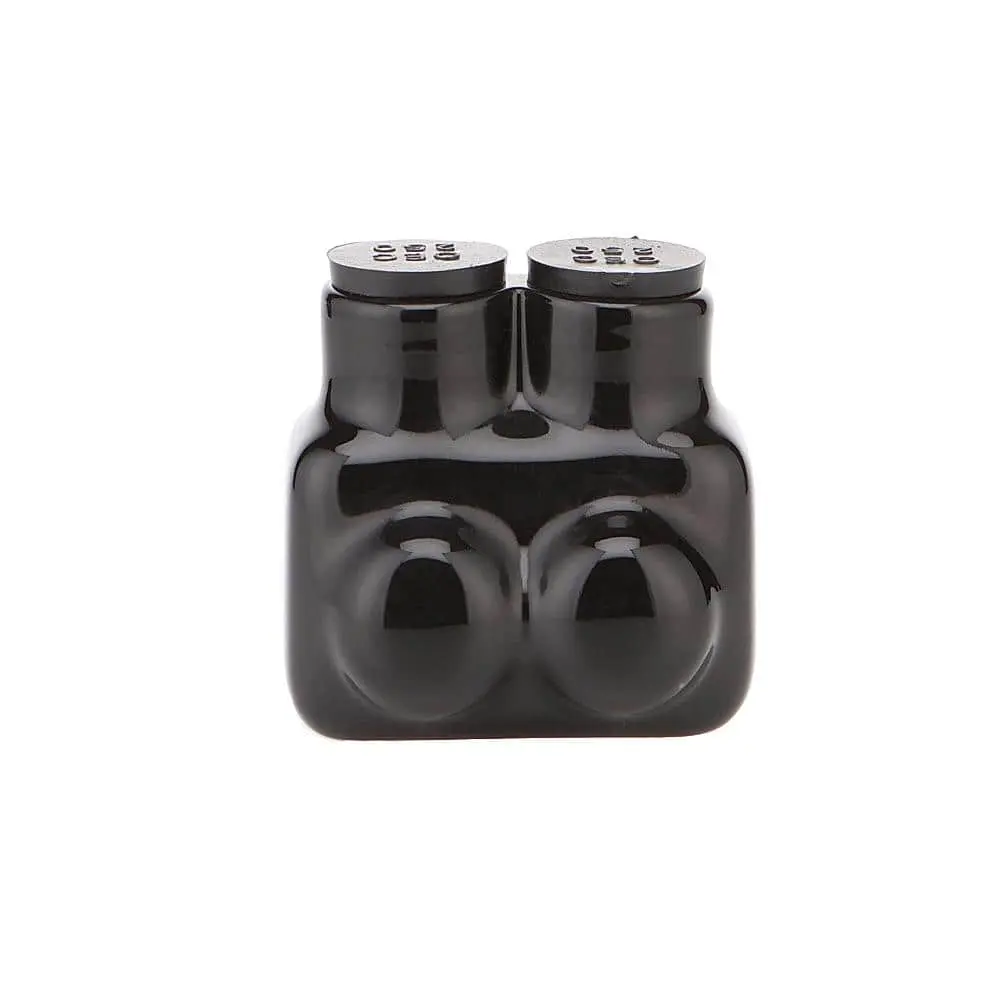

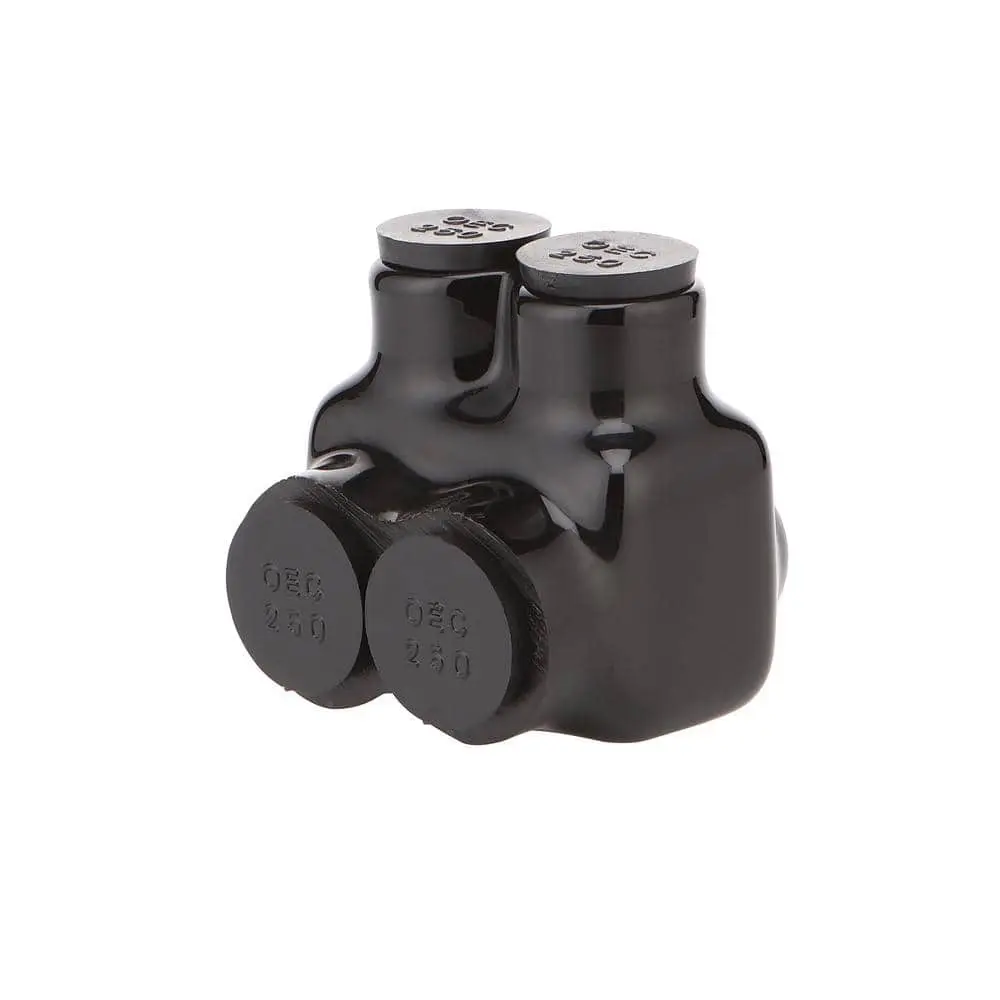

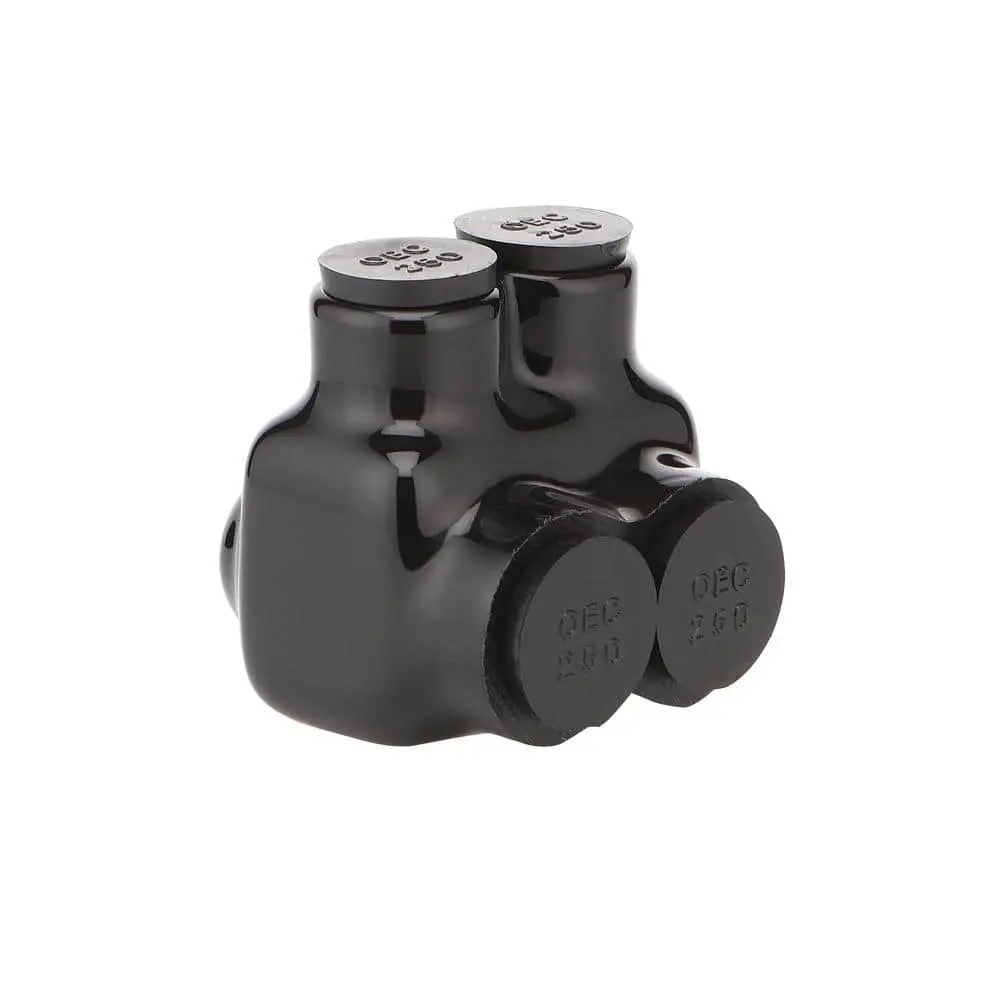

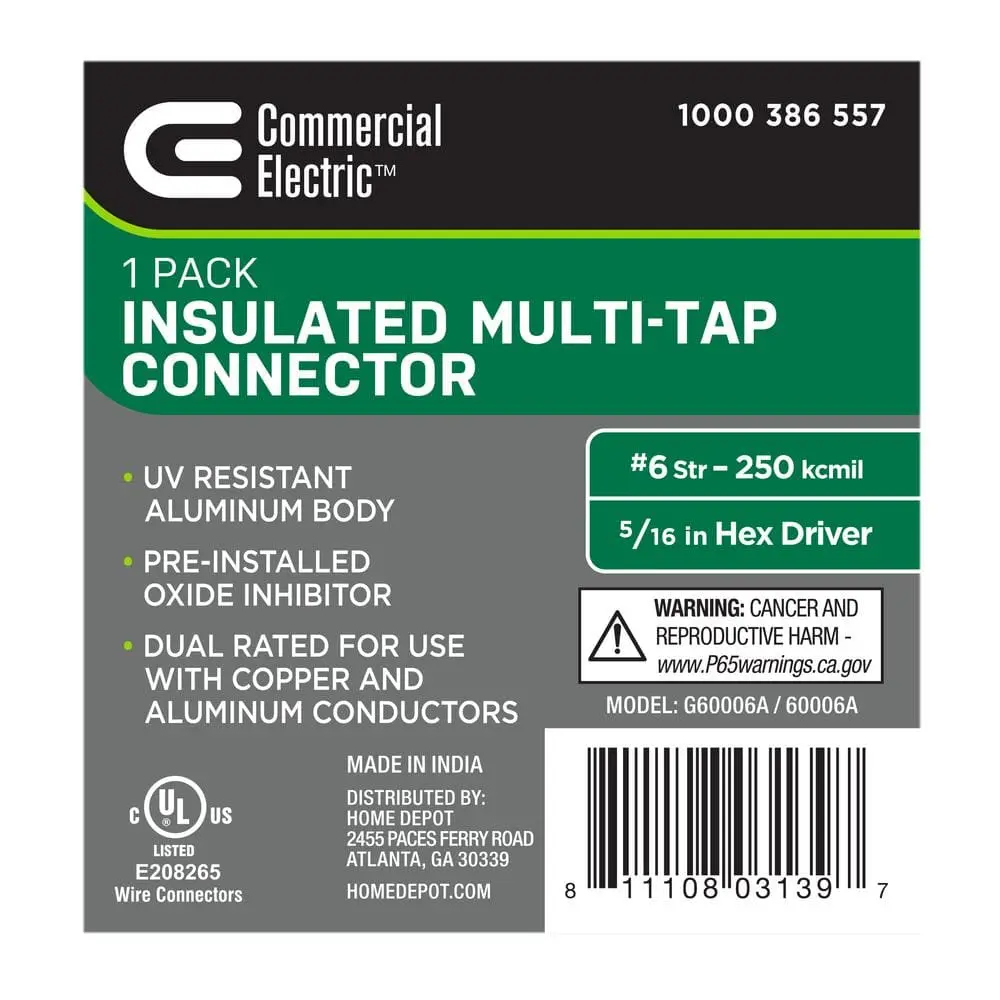

Commercial Electric6 AWG to 250 MCM Dual-Rated 2-Port 1-Sided Entry Insulated Multiple Tap Connector, Black (G60006A)
About This Product
This connector features a 5/16-inch (8 mm) hex size and is designed for conductor ranges from #6 stranded to 250 kcmil. The UV-rated aluminum body is equipped with a pre-installed oxide inhibitor for enhanced performance. It is dual-rated for both copper and aluminum conductors and is intended for indoor use only.
Highlights
- Hex Size (key): 5/16 in. (8 mm)
- Conductor Range: #6 stranded to 250 kcmil
- UV-rated aluminum body with pre-installed oxide inhibitor
- Dual-rated for copper and aluminum conductors
- For indoor use only
This item is available in Guam. Expected delivery is 3-5 working days, depending on location.
Access US Products Easily
Unique products just for you
Shop Smart, Shop Local
Exclusive deals nearby
Your Marketplace, Your Way
Seamless shopping experience
Payment Security
Secure payments for peace of mind
About This Product
Commercial Electric's aluminum multiple tap connectors provide semipermanent, weatherproof connections for tapping, terminating, and splicing cables and heavier gauge conductors without the need for special tools. These connectors feature a metal connector with an insulated housing to safeguard conductors from abrasion and chemical damage. The ports are sealed with a cap when unused and contain an oxide inhibitor to protect against oxidation, moisture, and contaminants. Dual-rated for use with both stranded copper and stranded aluminum conductors, they are intended for indoor/dry locations only.
Highlights
- Configuration: Tap - Same side entry
- Conductor Range: 6 STR - 250 MCM
- Hex Size (key): 5/16 in.
- Number of Ports: 2
- Number of Screws: 2 (Allen screws)
- Maximum Torque: 150 lbf-in
- Dual-rated for stranded copper or stranded aluminum conductors
- Pre-filled with oxide inhibitor
- Pre-insulated with UV-rated plastisol
- Abrasion and chemical-resistant
- Contaminant-free due to solid end caps
- For indoor/dry location use only
