Square D Homeline 150 Amp 30-Space 60-Circuit Indoor Main Breaker - Value Pack

About This Product

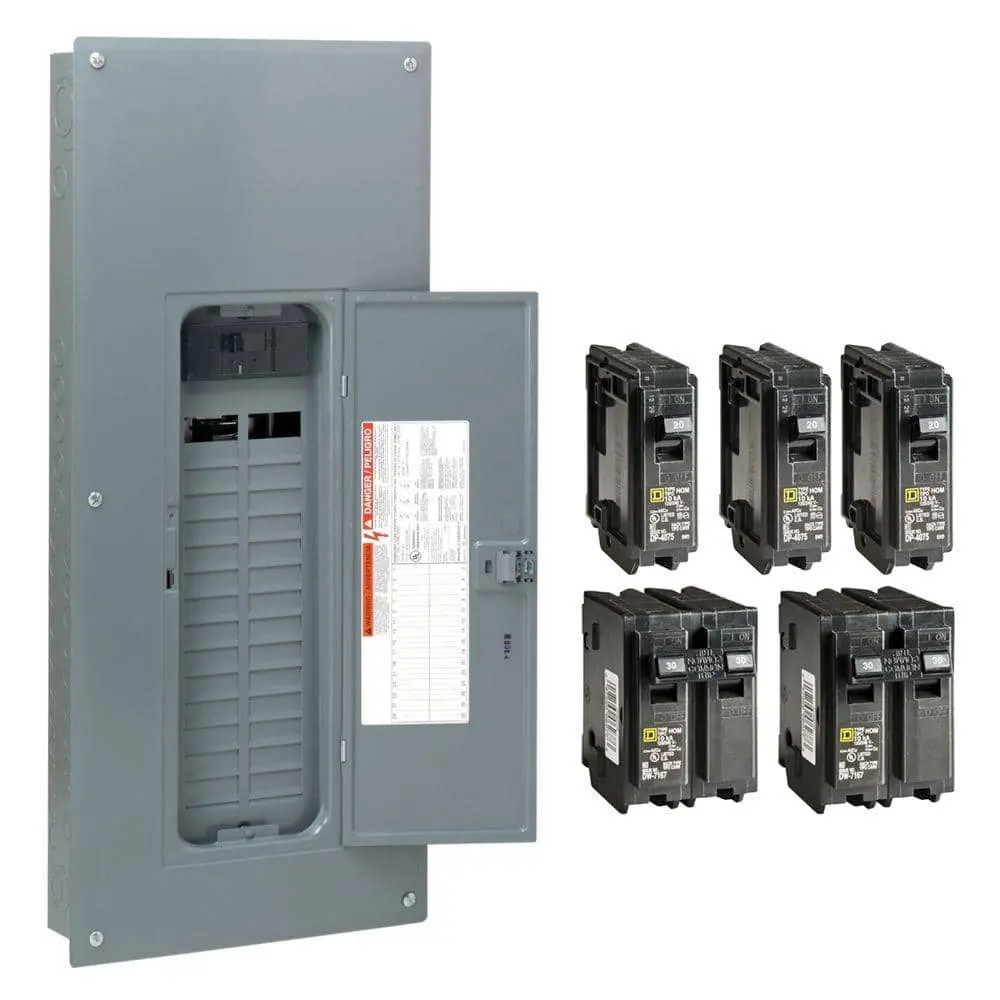

The Square D Homeline Value Pack 150 Amp 30-Space 60-Circuit Indoor Convertible Main Breaker Load Center for Plug-on Neutral breakers comes with a cover and a variety of breakers. It is UL-listed for both residential and commercial power distribution. The load center features a plated aluminum bus bar and is tested for compatibility with Homeline circuit breakers. Square D Homeline load centers are designed with value-conscious contractors, remodelers, builders, and homeowners in mind, offering fast installation and efficient wire use.

Highlights

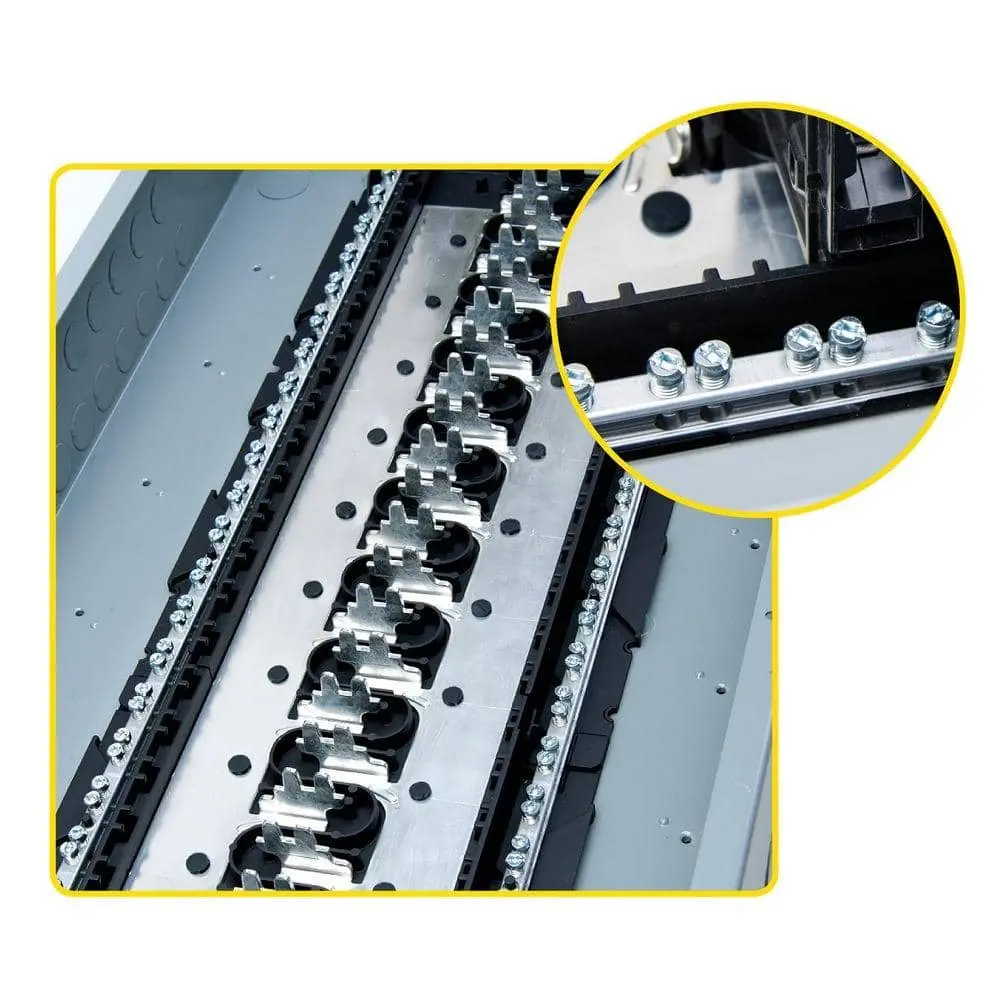

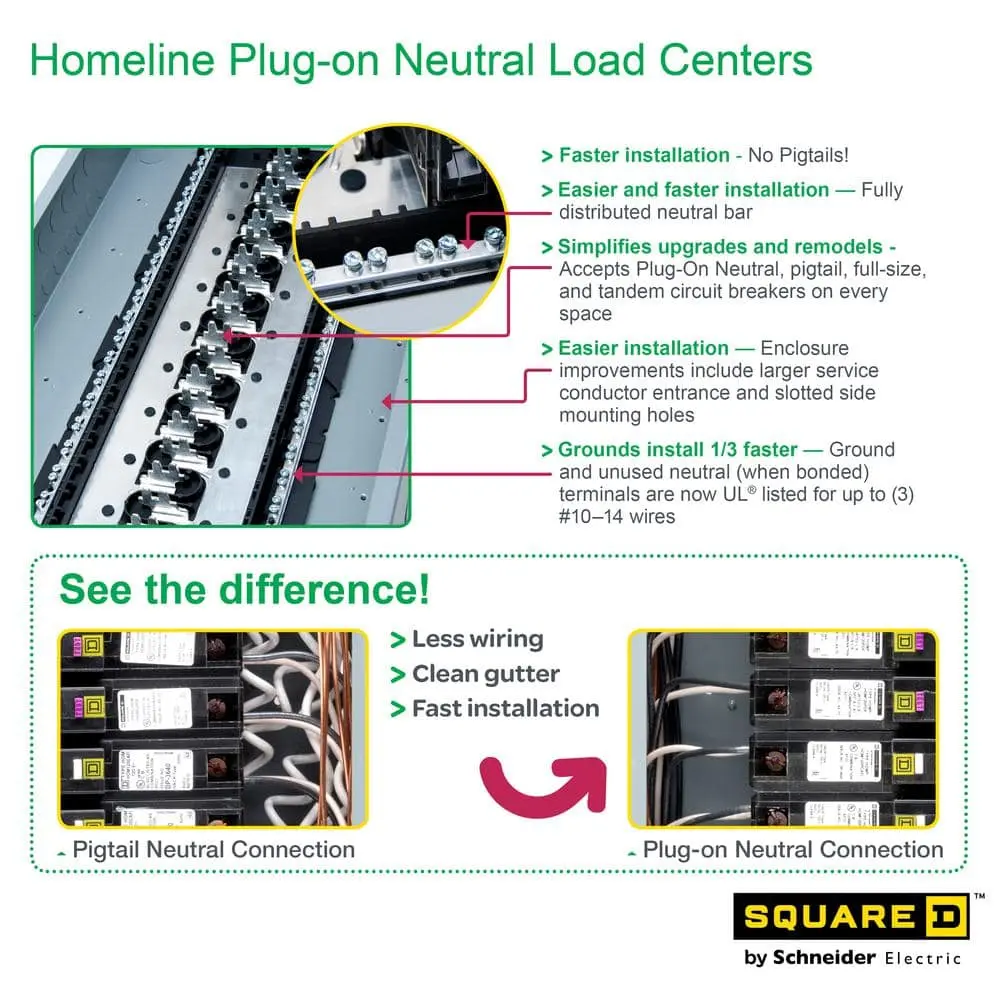

• Includes a fully distributed neutral bar for easy installation of Homeline plug-on neutral combination arc fault breakers
• Each pole space supports Square D Homeline full-size, tandem, or quad breakers
• Ground and neutral bars accommodate up to (3) #10-14 equipment grounds
• Includes (3) HOM120 20 Amp single-pole circuit breakers, (2) HOM230 30 Amp double-pole circuit breakers, and a combination flush/surface cover
• Compatible with plug-on secondary surge arrestor (sold separately)
• Supports overhead/underground feed by rotating the device before installation
• Single-phase, indoor main breaker Homeline breaker box
• Rated for 120/240 VAC with a 22,000 AIR short-circuit current rating

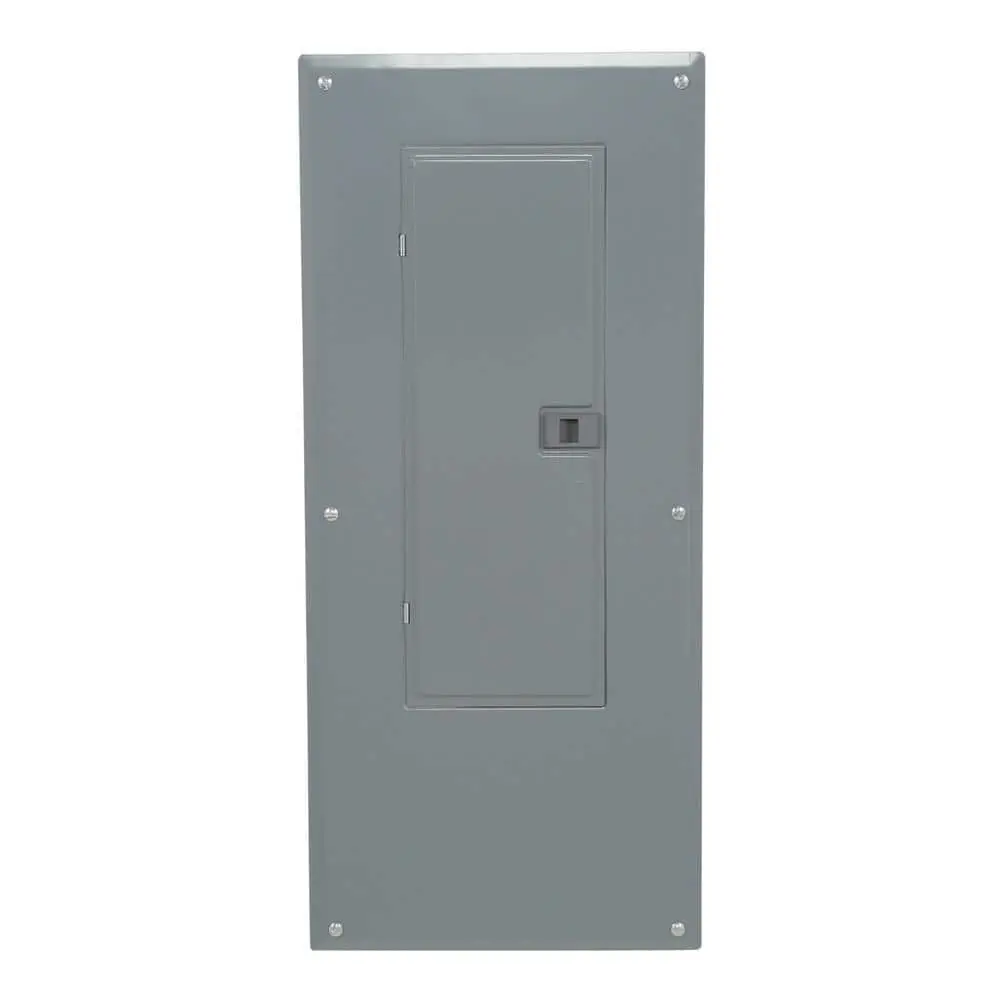

• Features an automatic flush-adjusting cover for faster installation
• Designed with straight-in mains to reduce cable costs and save time
• Distributed split branch neutral with terminal screws backed out, offering up to 50% more terminals than required, improving wiring flexibility and installation speed
• Rugged thermoplastic interior assembly
• Slot/square drive screws for compatibility with both standard flat blade or square-head drivers for precise torque
• Easily removable interior with a single captive screw for job site protection
• Three ground bar mounting locations (left, right, and end) for flexible wiring options
