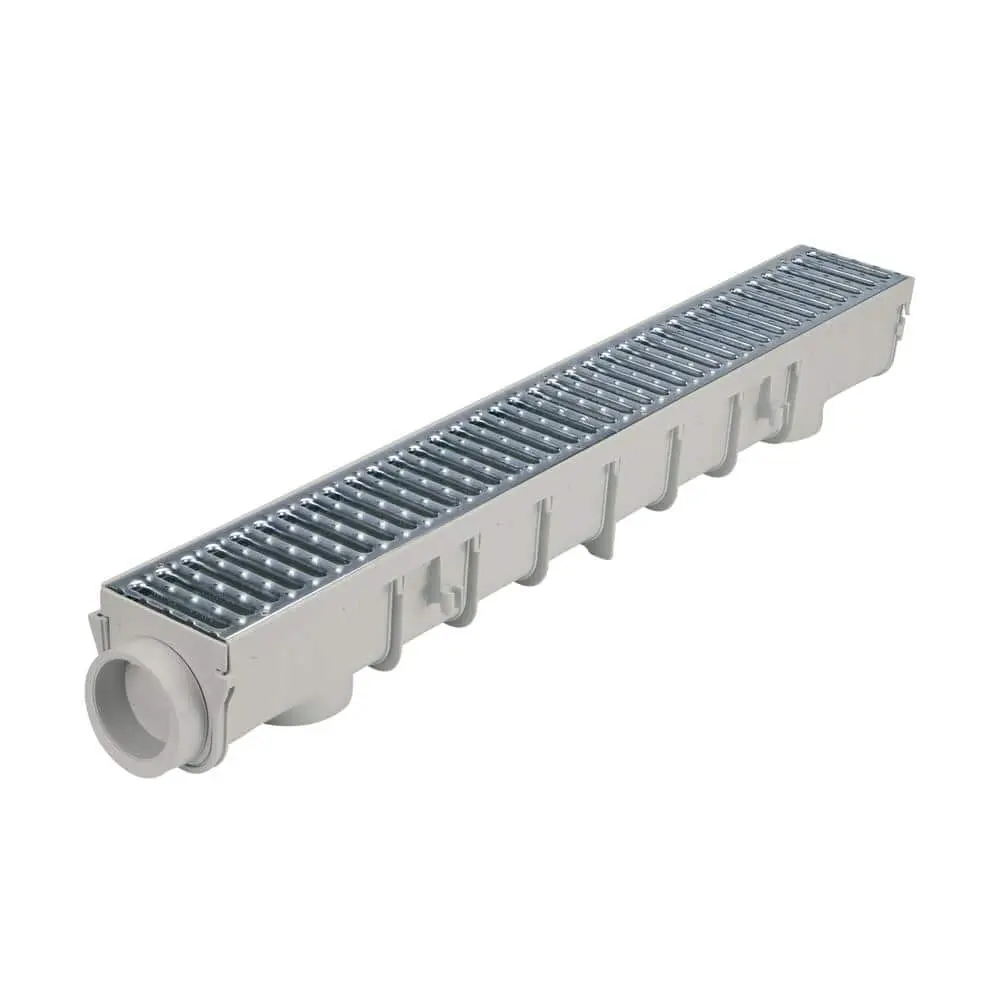

NDS Pro Series 5 in. x 40 in. Channel Drain Kit with Metal Grate (864GMTL)

About This Product

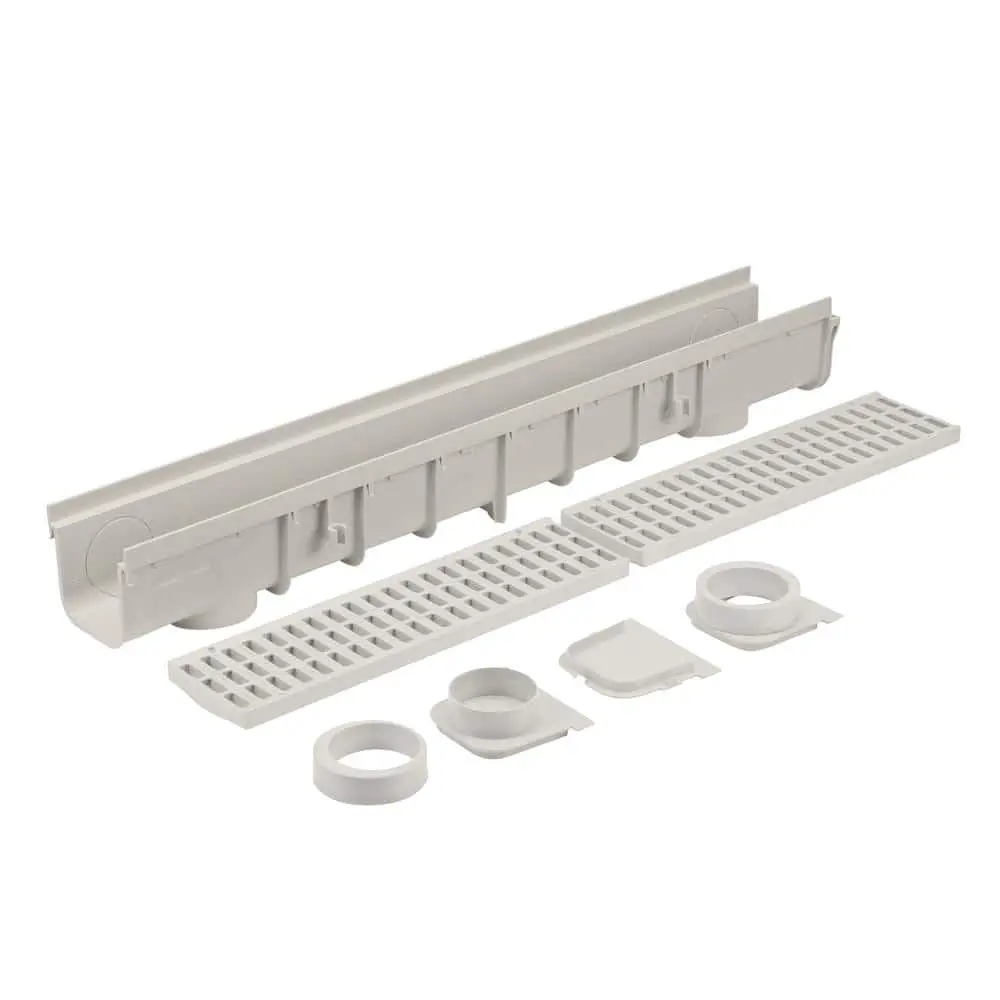

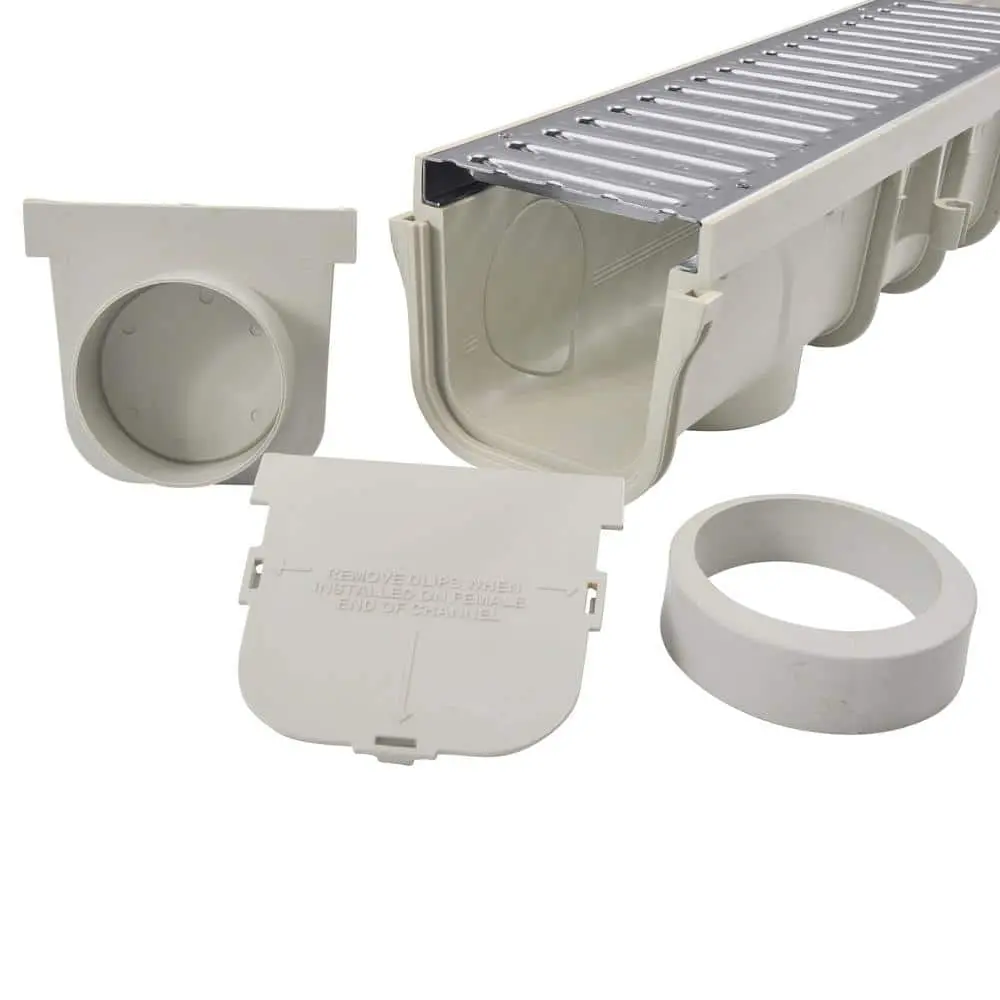

The 5 in. Pro Series Channel Drain, Deep Profile, provides an effective solution for draining excess water and preventing property damage. This highly durable modular drain system is ideal for handling moderate water flows from driveways, patios, courtyards, walkways, and sports facilities. The kit includes a 4-3/4 in. deep polypropylene channel, galvanized steel grates, end cap/outlet, and end cap. The interlocking design of the channels eliminates the need for couplings, making installation easy and secure. Channels can be shortened to 4 in. increments using saw guides. With a variety of outlet options, the channel provides 8 different outlet possibilities per section, including integrated bottom outlets and side knockouts. Channel drains, or trench drains, are used for surface drainage, collecting and conveying water to drain pipes that direct it downstream for proper discharge. This system is a proven alternative to traditional concrete drains. NDS is the leader in stormwater management, offering top-quality products and expert support since 1972.

Highlights

• Prevents damage: Captures and conveys excess surface water, reducing risks of mildew growth, concrete staining, and costly structural damage.
• Ideal for: Draining moderate water flows from driveways, concrete/paver patios, courtyards, walkways, and sports facilities.

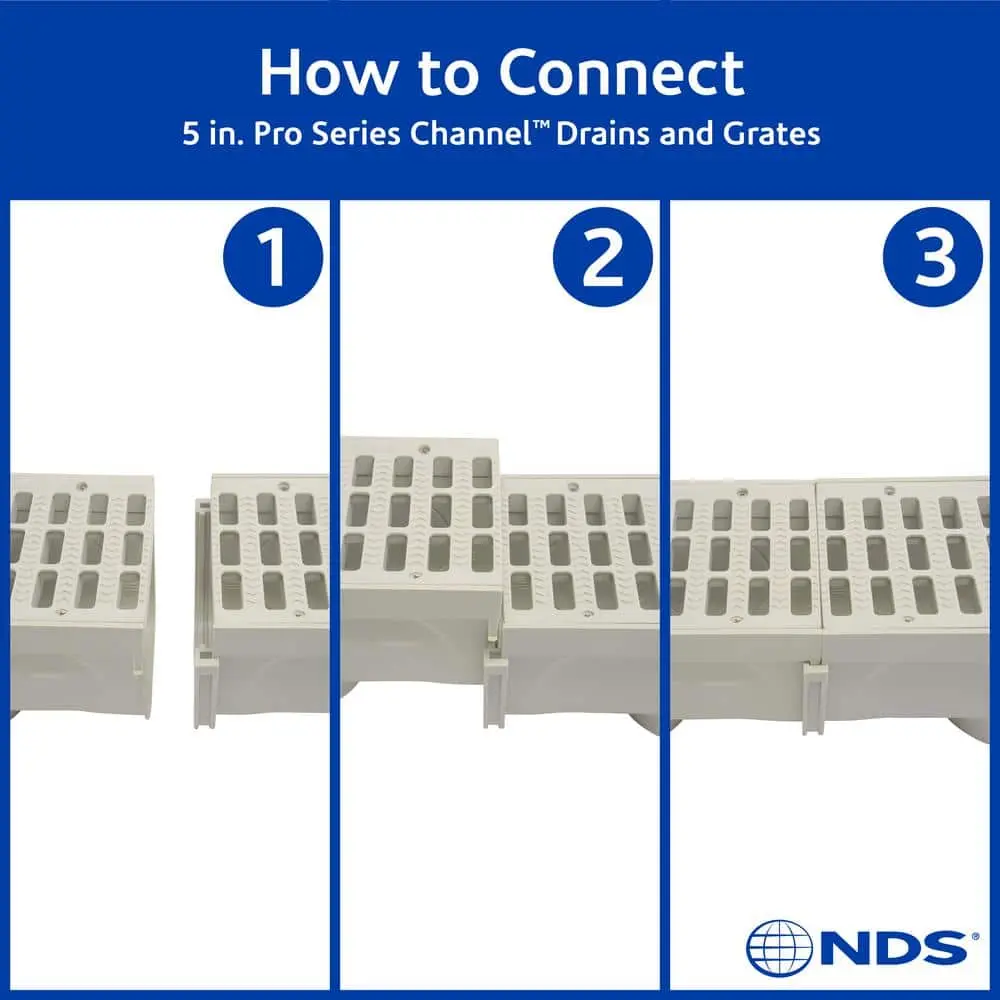

• Easy installation: Interlocking channels with no couplings needed; can be cut to size in 4 in. increments using the provided saw guide.
• Versatile outlet options: Includes 8 outlet options per section, with outlets for 3 in. & 4 in. sewer and drain fittings, and side-outlet knockouts.
• Heavy-duty performance: Rated for NDS Class B Loads (up to 175 psi), ideal for medium-duty traffic (autos, light trucks, and pneumatic tires at speeds under 20 mph).

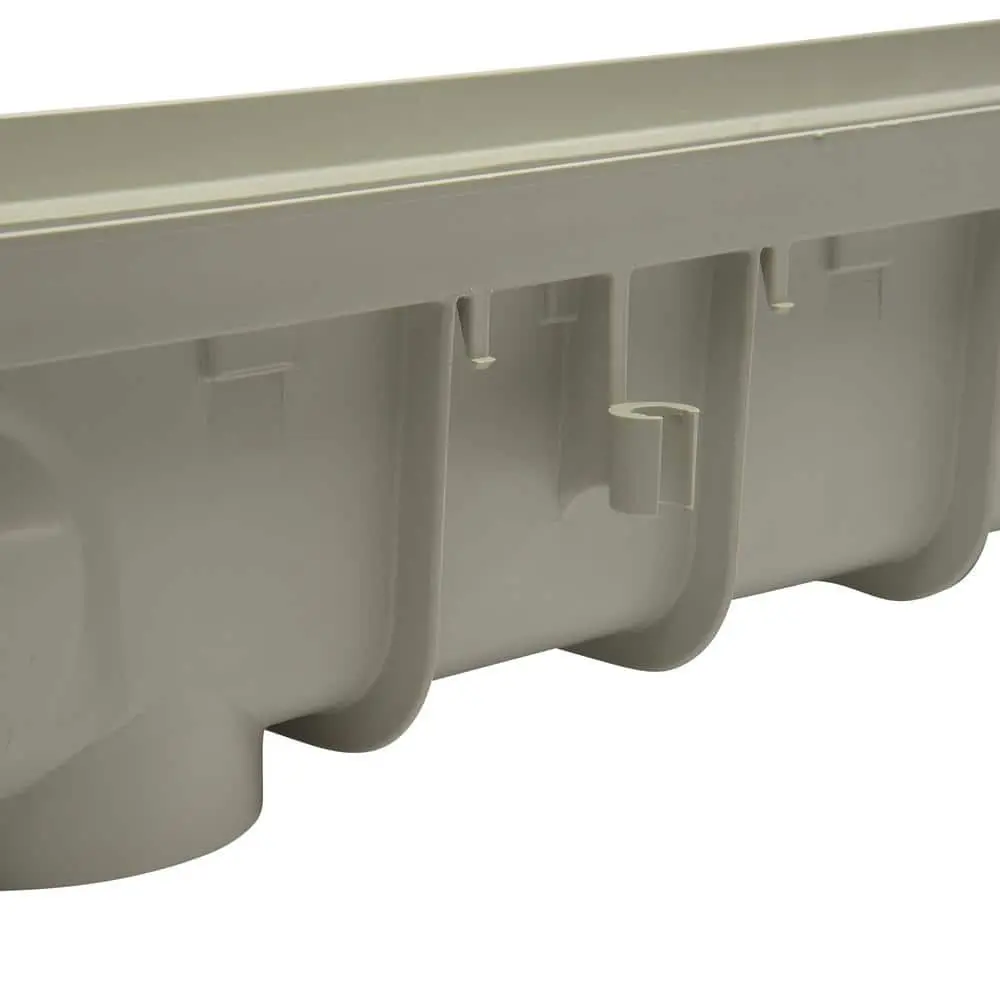

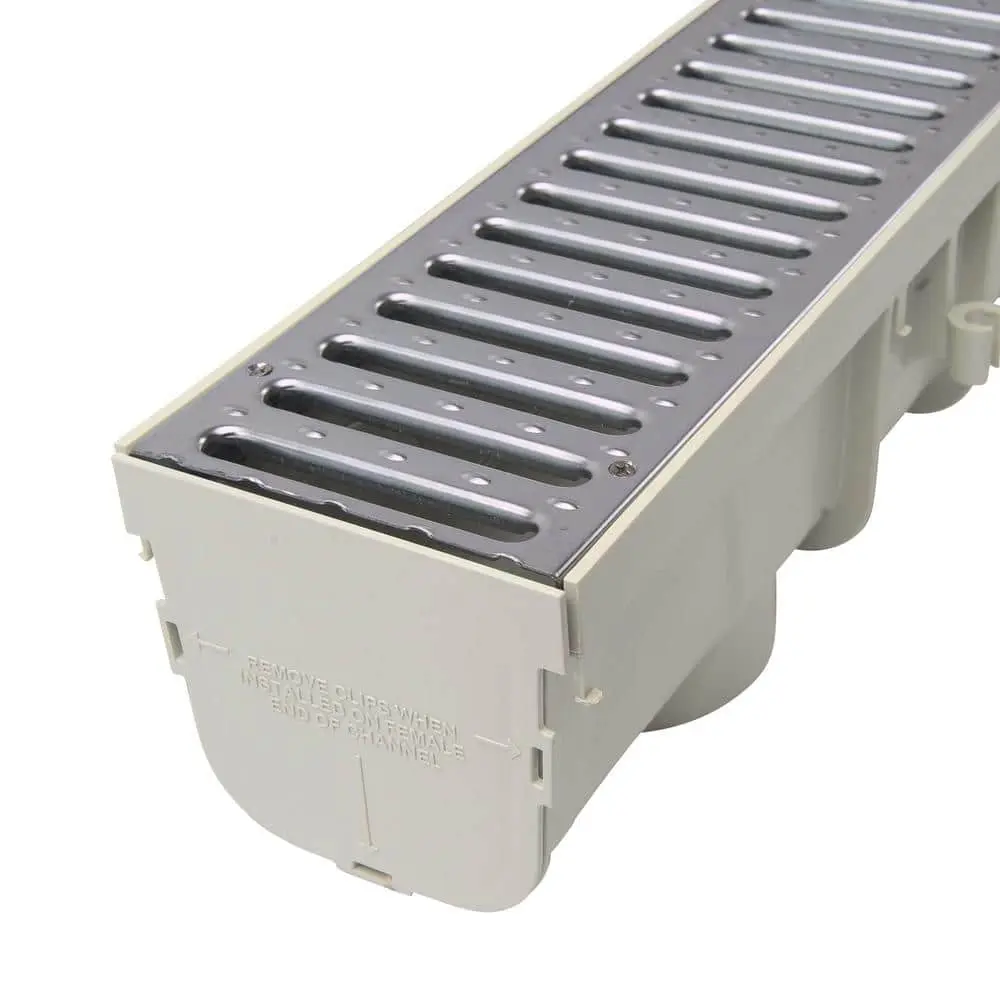

• Durable design: Features thick walls, extended side ribs, and galvanized steel grates to enhance strength and longevity.
• Maintenance-friendly: Removable grates for easy cleaning and debris removal.
• Customizable layout: Use with Qwik-Turn Deep Radius Couplings to drain around curves, or connect multiple drains for longer runs.
• Sustainable construction: Made from a blend of virgin and recycled polypropylene (PP) with UV inhibitors to prevent fading and cracking.
• Complete drainage solution: Works with pop-up drainage emitters, Flo-Well Dry Well System, and EZ Drain Gravel-Free French Drain System for efficient water management.

Founded in 1972, NDS is the go-to choice for professionals, offering high-quality stormwater management products and tools to ensure proper drainage and protect the environment.
