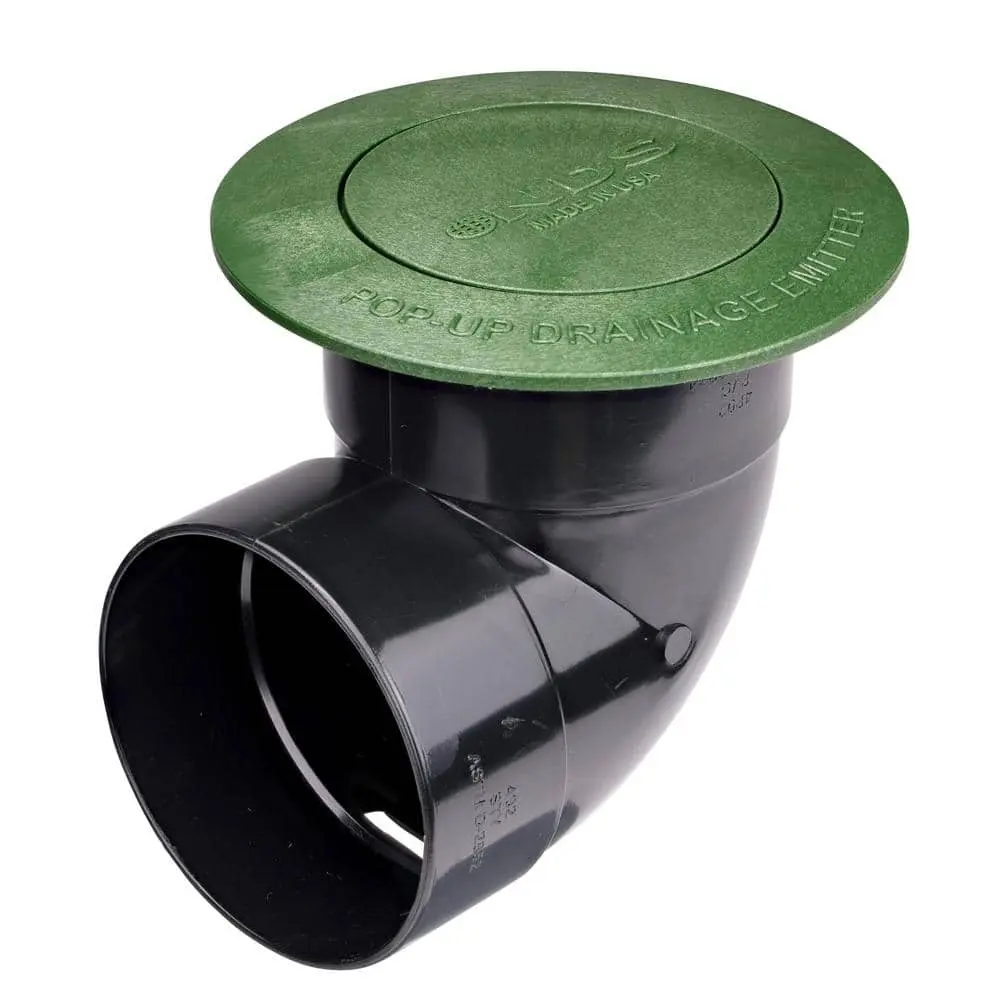

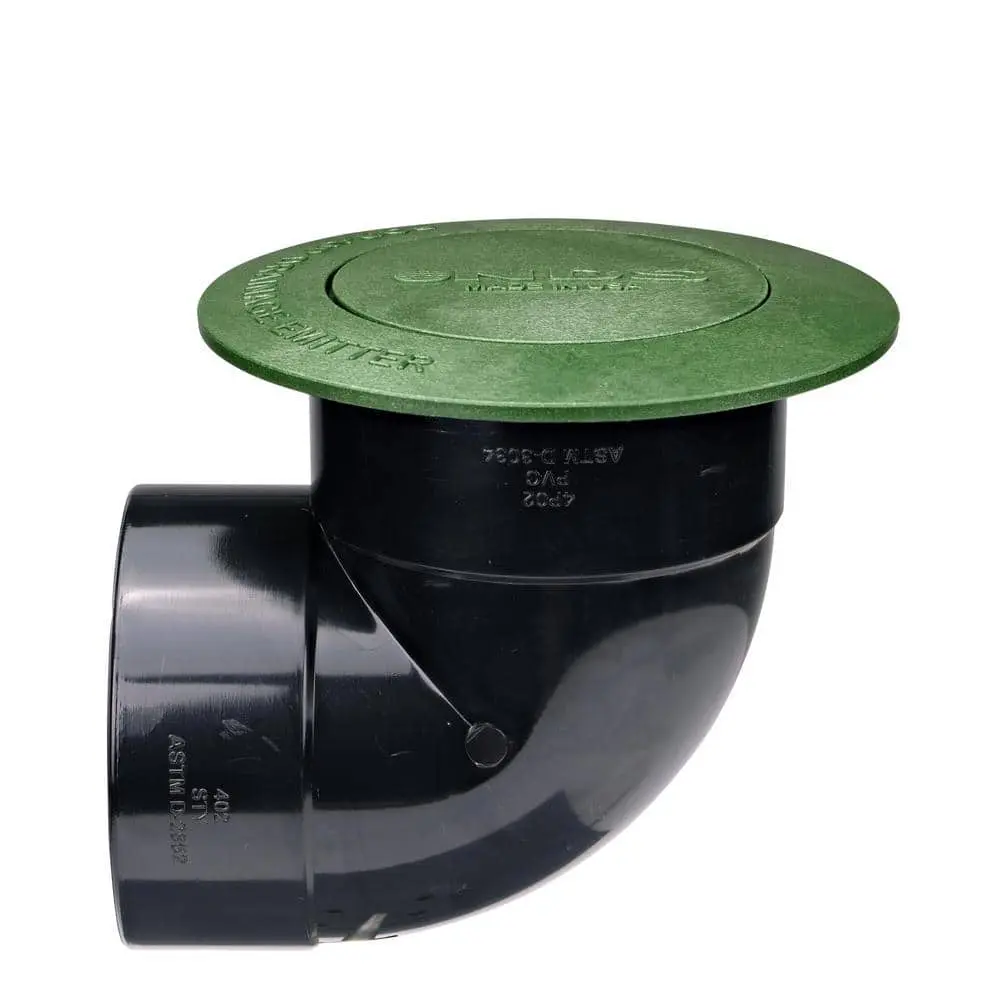

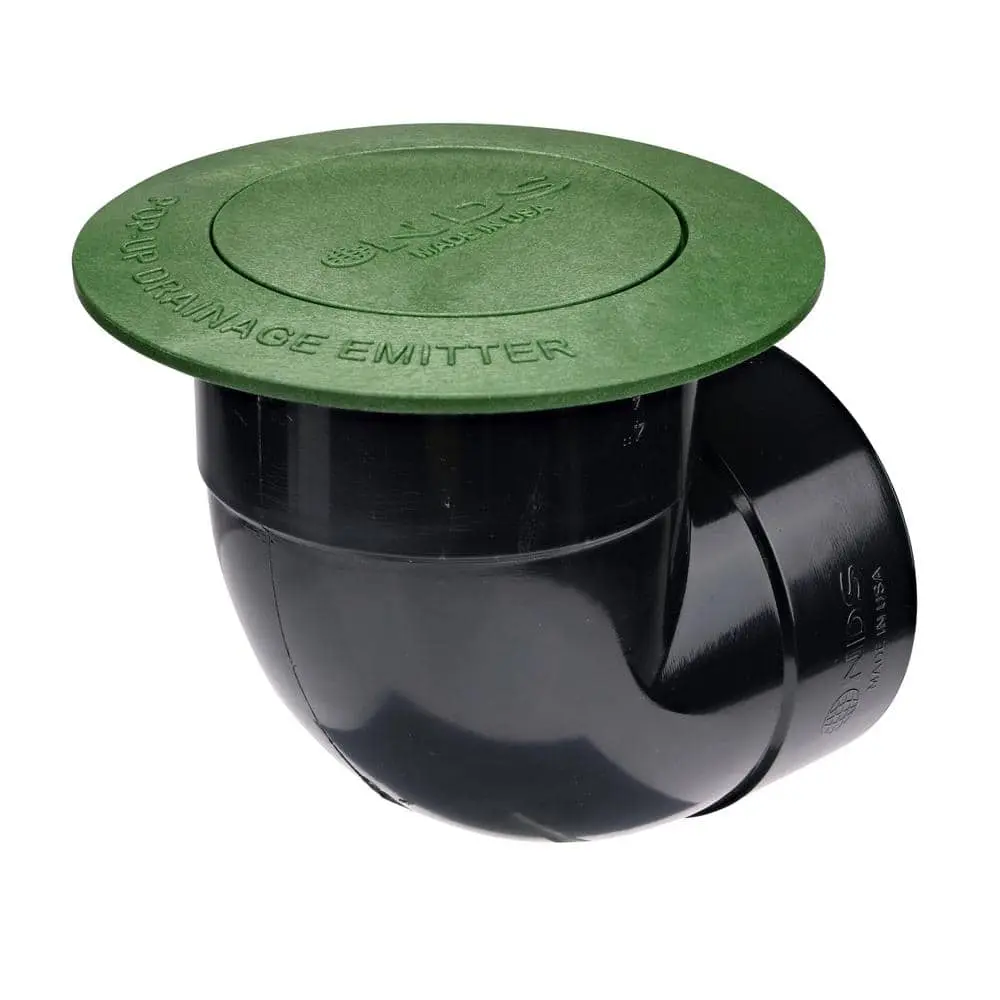

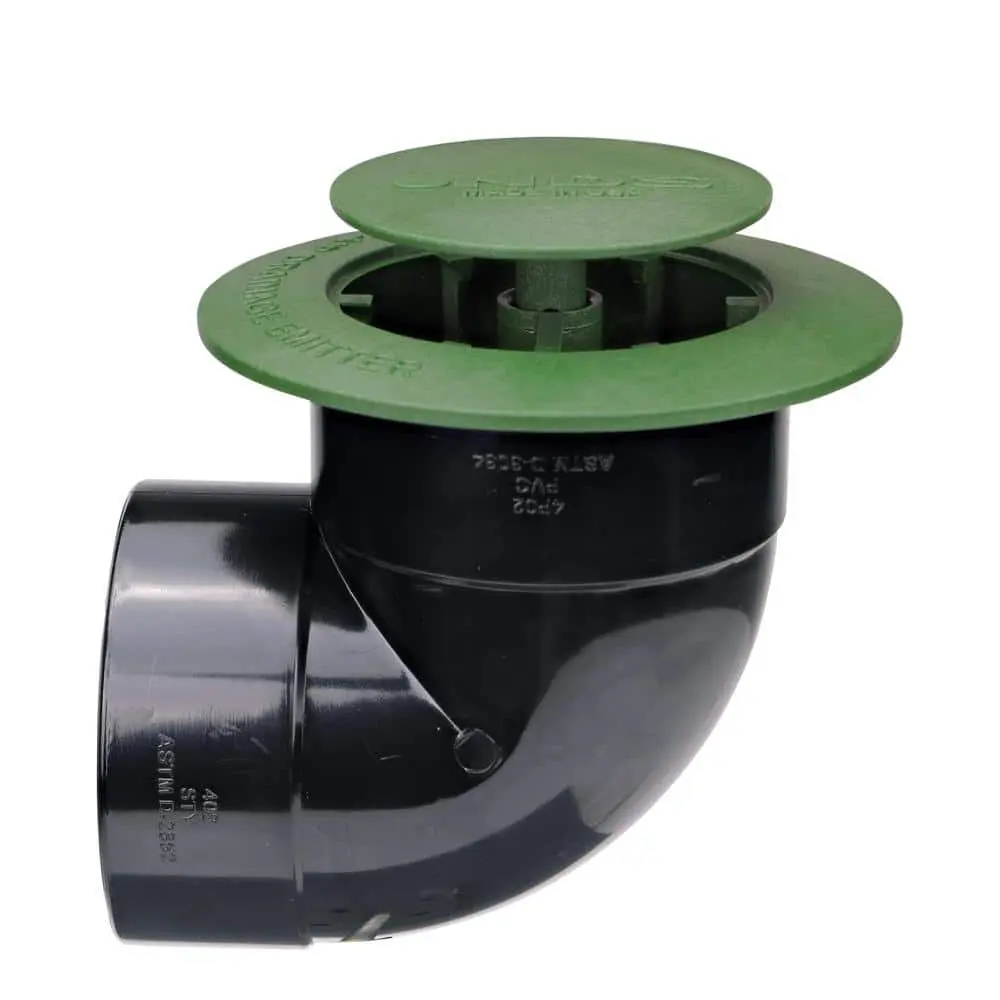

NDSPop-Up Drainage Emitter with Elbow for 4 in. Drain Pipes, Green Plastic (422G)

About This Product

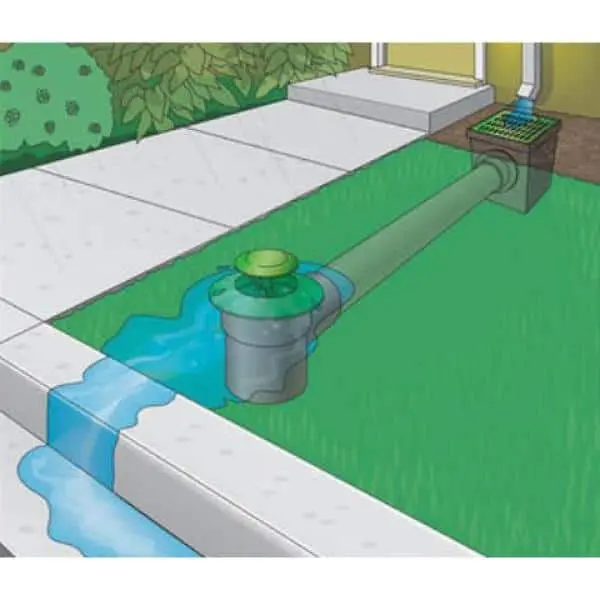

The Pop-Up Drainage Emitter with Elbow is designed to discharge water captured upstream, directing it away from structures, erosion-prone areas, and poor drainage zones. This emitter connects to 4-inch sewer and drain pipes or 4-inch triple-wall pipes. As water pressure builds, the cap "pops up" to release water at rates up to 56 GPM and closes once the flow diminishes. The cap remains closed when not in use, preventing debris and rodents from clogging the drainage system. Its flat profile ensures the emitter blends into the landscape, and the internal contours reduce clogging potential while providing durability. The flange design prevents grass overgrowth, and the weep hole at the elbow helps drain any remaining water to avoid stagnation or freezing in colder weather. Made with high-density polyethylene (HDPE) for the cap and cover, and polyvinyl chloride (PVC) for the elbow, this emitter is a reliable solution for stormwater management, working in conjunction with other drainage components like catch basins and trench drains.

Highlights

• Discharges water collected upstream to a downstream point
• Ideal for installation in low-lying areas away from buildings, landscapes, or poor drainage zones

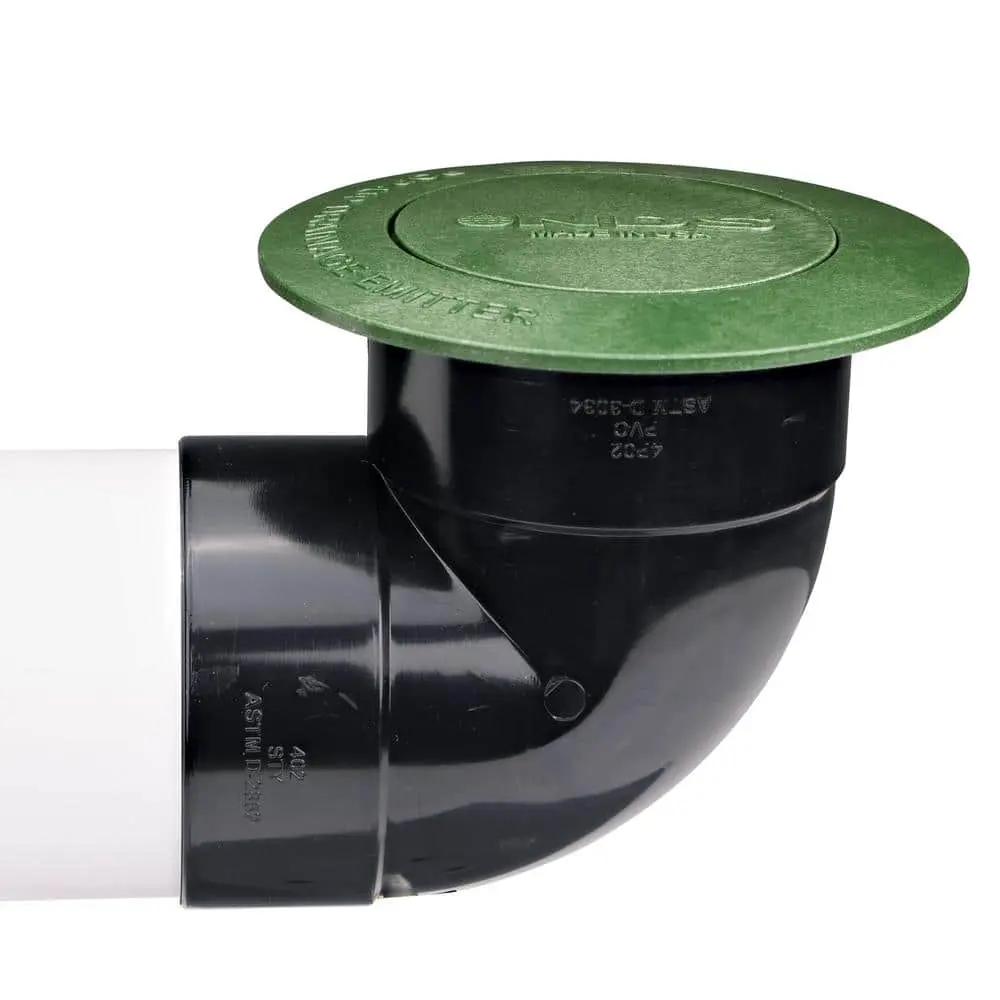

• Elbow connects to 4-inch sewer and drain pipe or 4-inch triple-wall pipe, with adaptors available for other pipe types
• Releases collected water at up to 56 GPM
• Suitable for pedestrian traffic and lawn tractors when installed correctly
• Cap pops up up to 1 inch as water pressure builds and closes when flow diminishes; stays closed when not in use to block debris and rodents

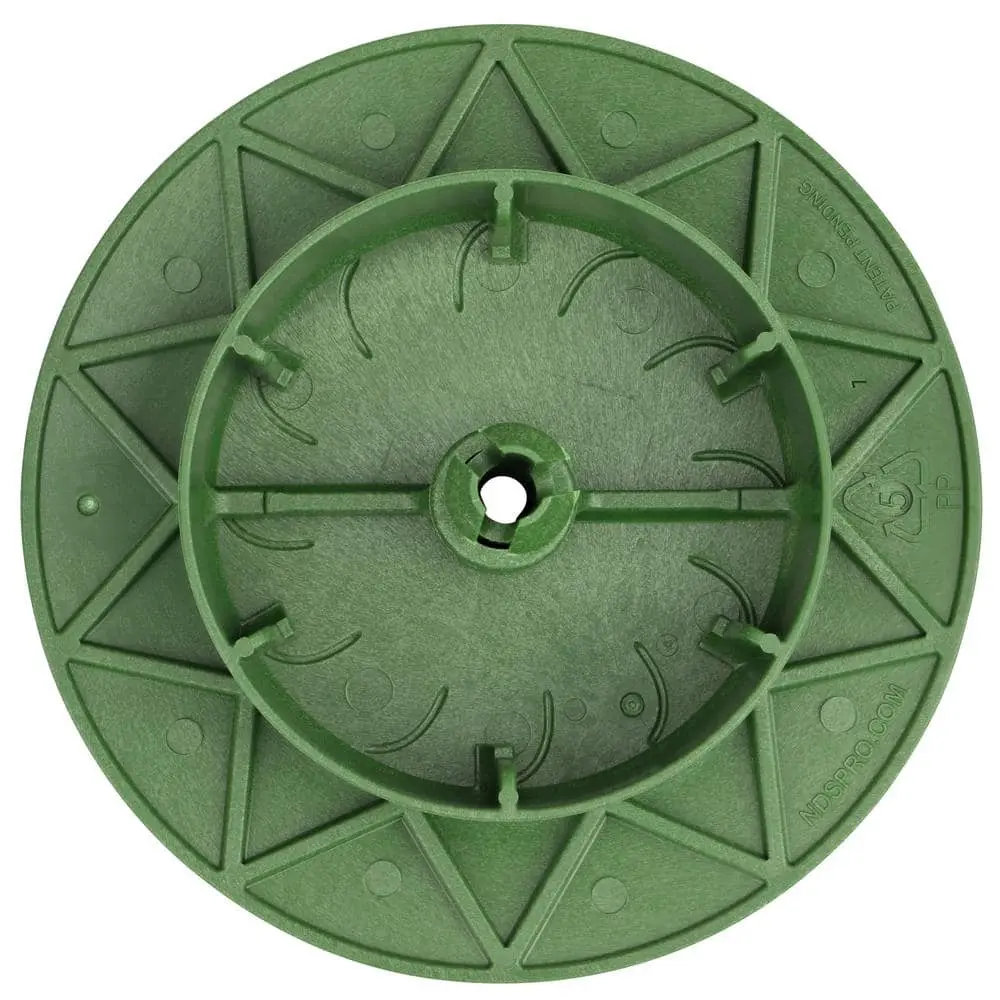

• Flange design prevents grass overgrowth

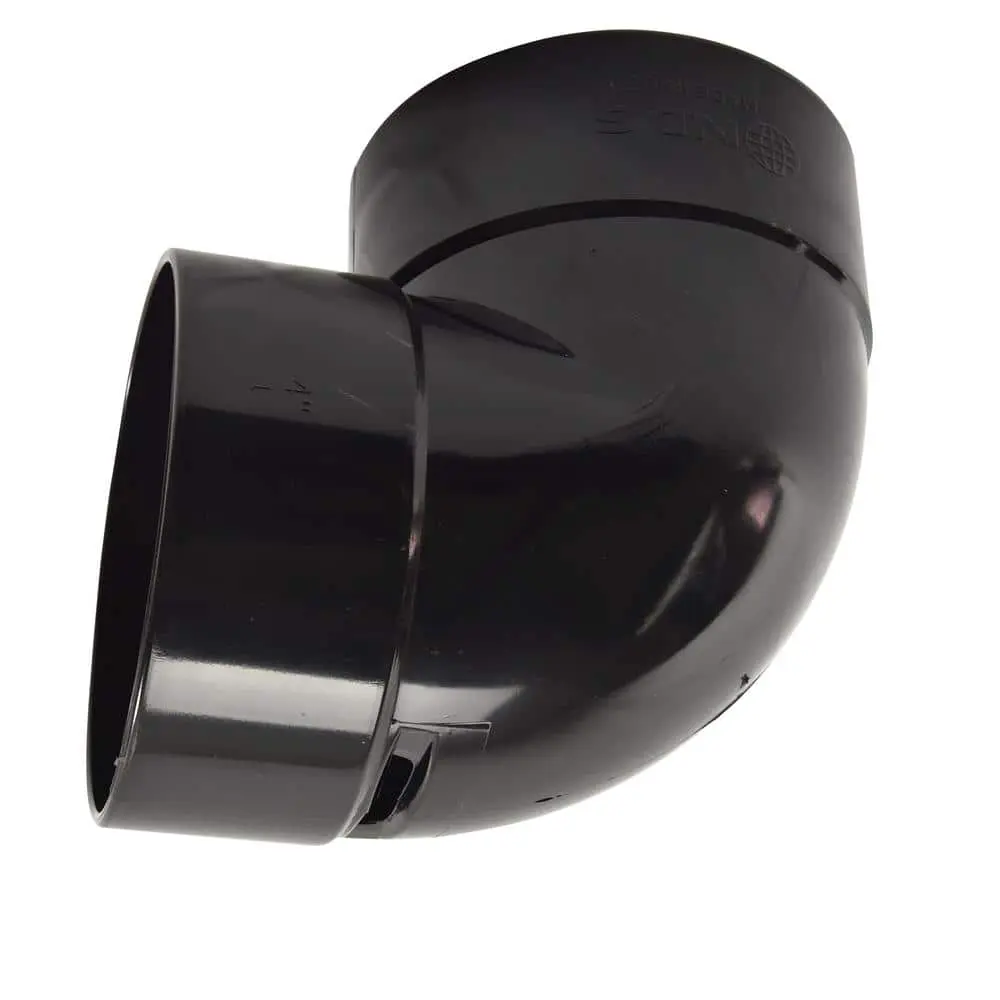

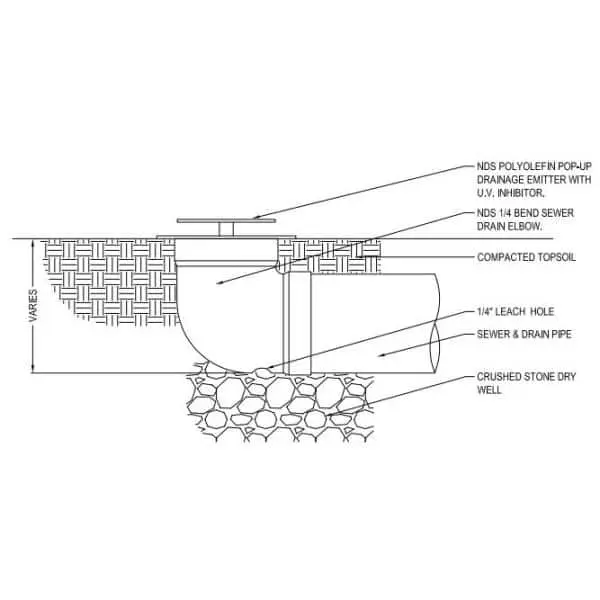

• Small weep hole in the elbow drains water to prevent stagnation or freezing
• Flat profile reduces trip hazards and keeps the emitter flush with the ground
• Durable, clog-resistant design with internal ribs for strength and durability
• Part of a comprehensive drainage system to manage stormwater and standing water
• Made with UV-resistant HDPE and PVC, ensuring long-lasting performance
• Use with other NDS drainage solutions like catch basin drains, channel drains, or dry well systems for efficient stormwater management
• NDS offers free tools and resources, including a mobile app and home drainage center, to help ensure successful installation and system design
