NDS 8 in. Plastic Round Drainage Grate in Green (20)

About This Product

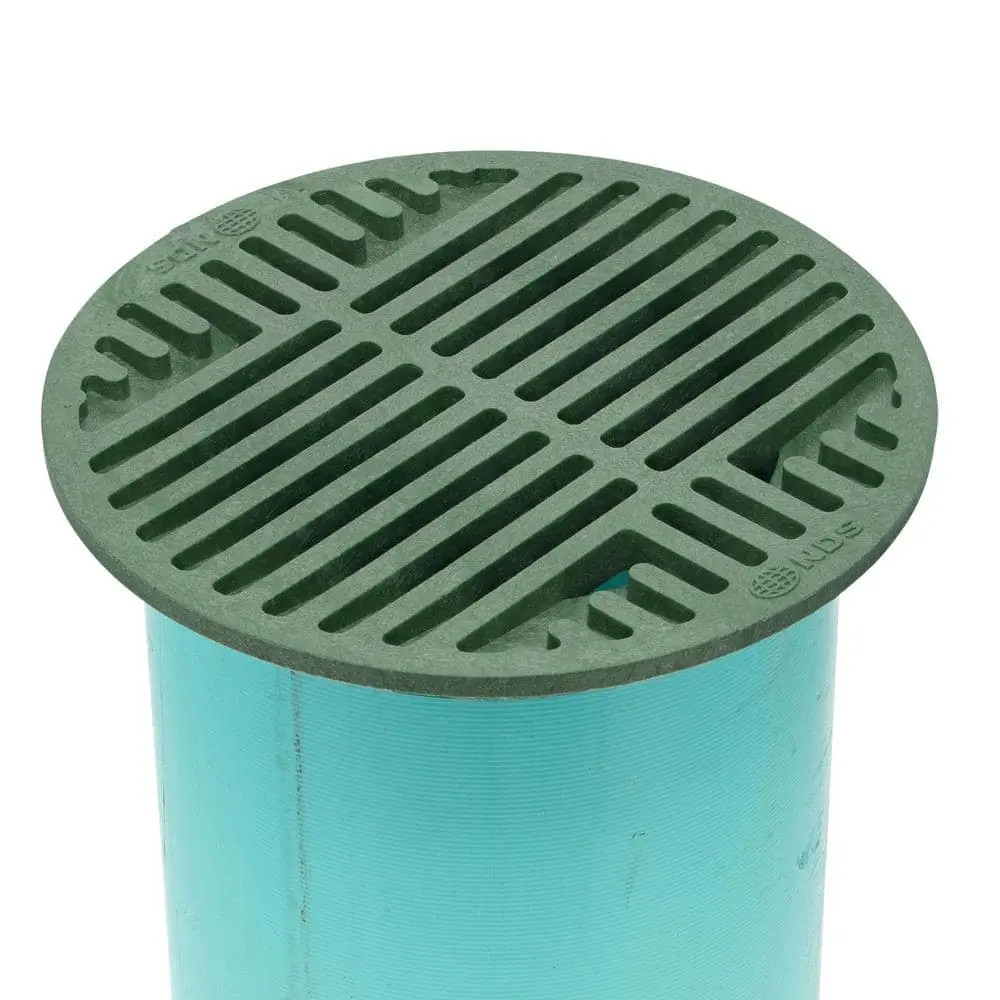

Efficiently remove excess stormwater from your property while preventing leaves and debris from clogging your pipeline with the 8 in. Round Drain Grate. Designed to fit over a drain pipe or Spee-D Catch Basin Drain, it's perfect for managing light flows of stormwater from small lawns, landscaped areas, patios, and walkways. With an open surface area of 11.5 sq. in. and a flow rate of 35 GPM, this drain grate connects to the Spee-D Catch Basin Drain, 6 in. sewer and drain pipe & fittings, and 6 in. single-wall corrugated pipe for a soil-tight fit. Made from durable polyethylene, the grate is UV-treated to prevent cracking or fading from sun exposure. As part of a complete drainage system, it directs water into drain pipes, where it is carried downstream to a discharge point such as a pop-up emitter or percolates into the ground via a dry well or infiltration trench.

Highlights

• Protects your drainage system by blocking debris from entering and clogging pipes while allowing excess surface water to flow through
• Ideal for light water flows from small lawns, patios, walkways, and landscaped areas

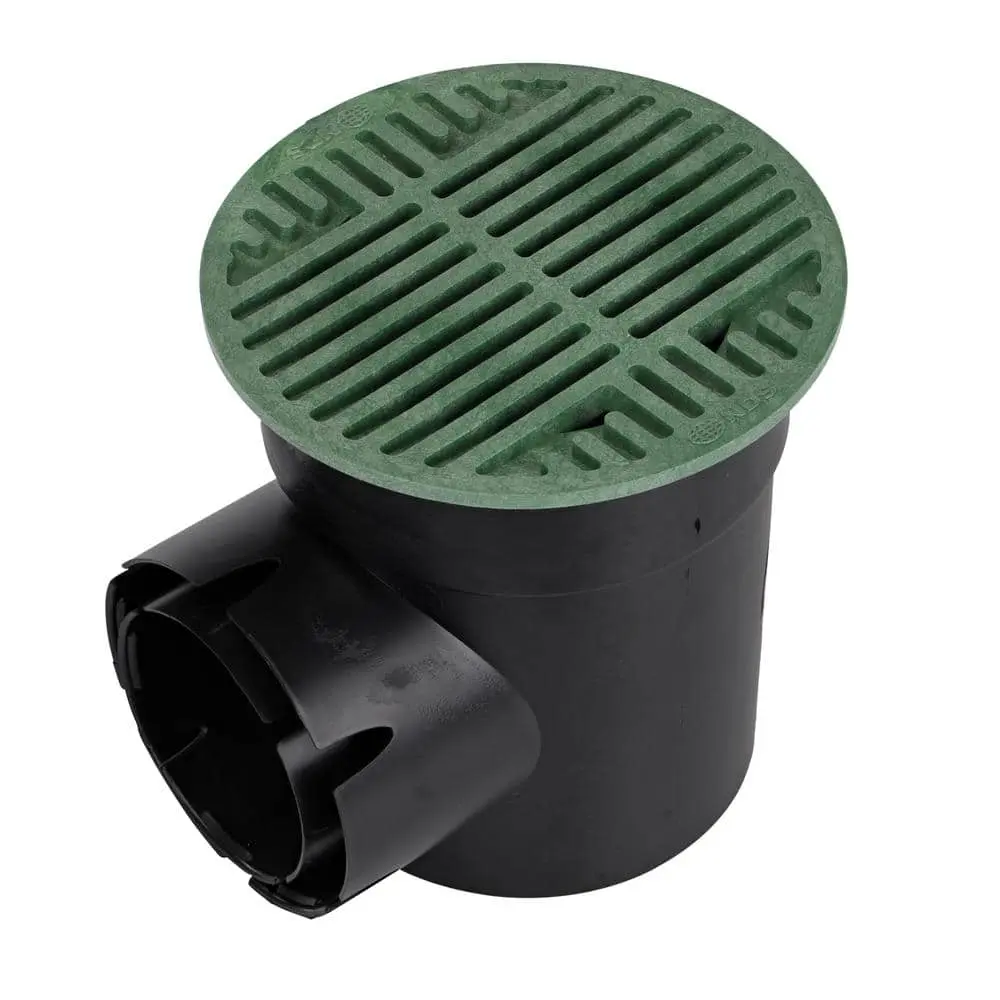

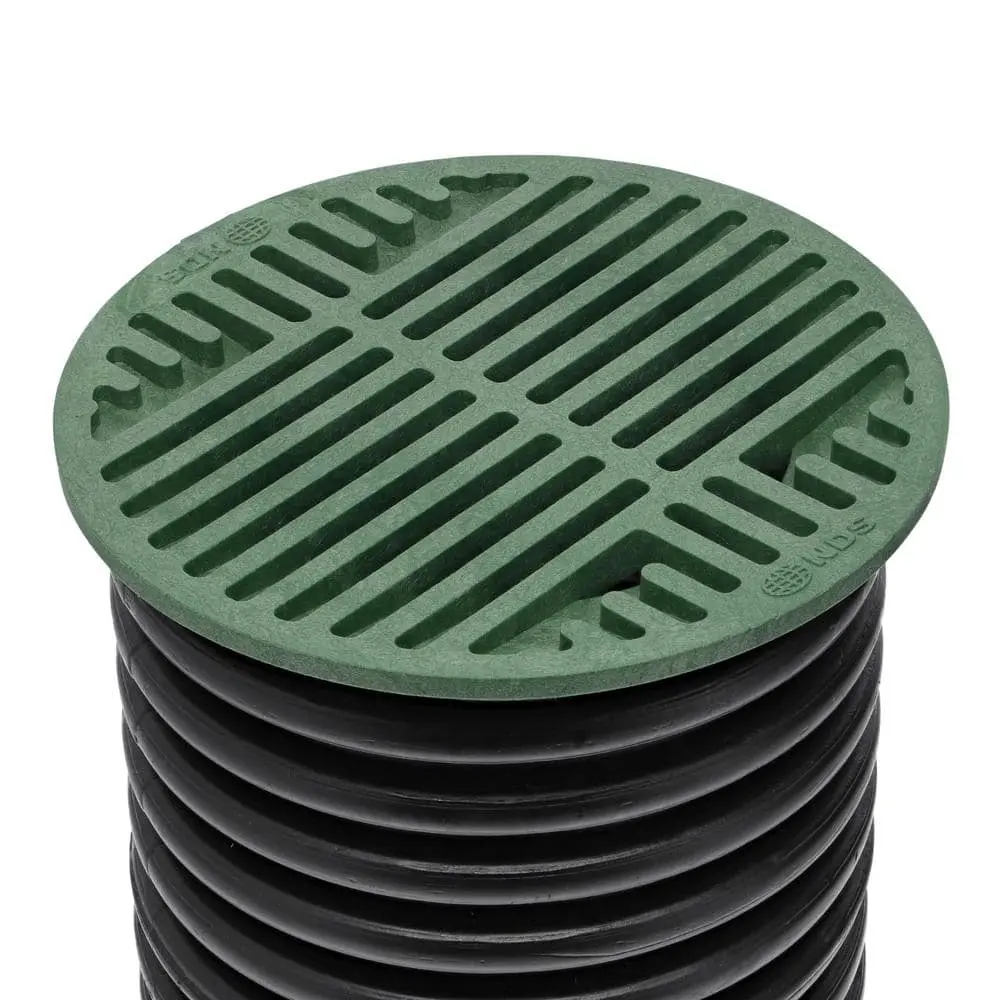

• Compatible with Spee-D Catch Basin Drain, 6 in. sewer and drain pipes & fittings, and 6 in. single-wall corrugated pipe
• 11.5 sq. in. open surface area; 35 GPM flow rate
• Rated for NDS Class A loads (up to 60 psi) when properly installed—suitable for pedestrian, bicycle, and wheelchair traffic; ADA compliant

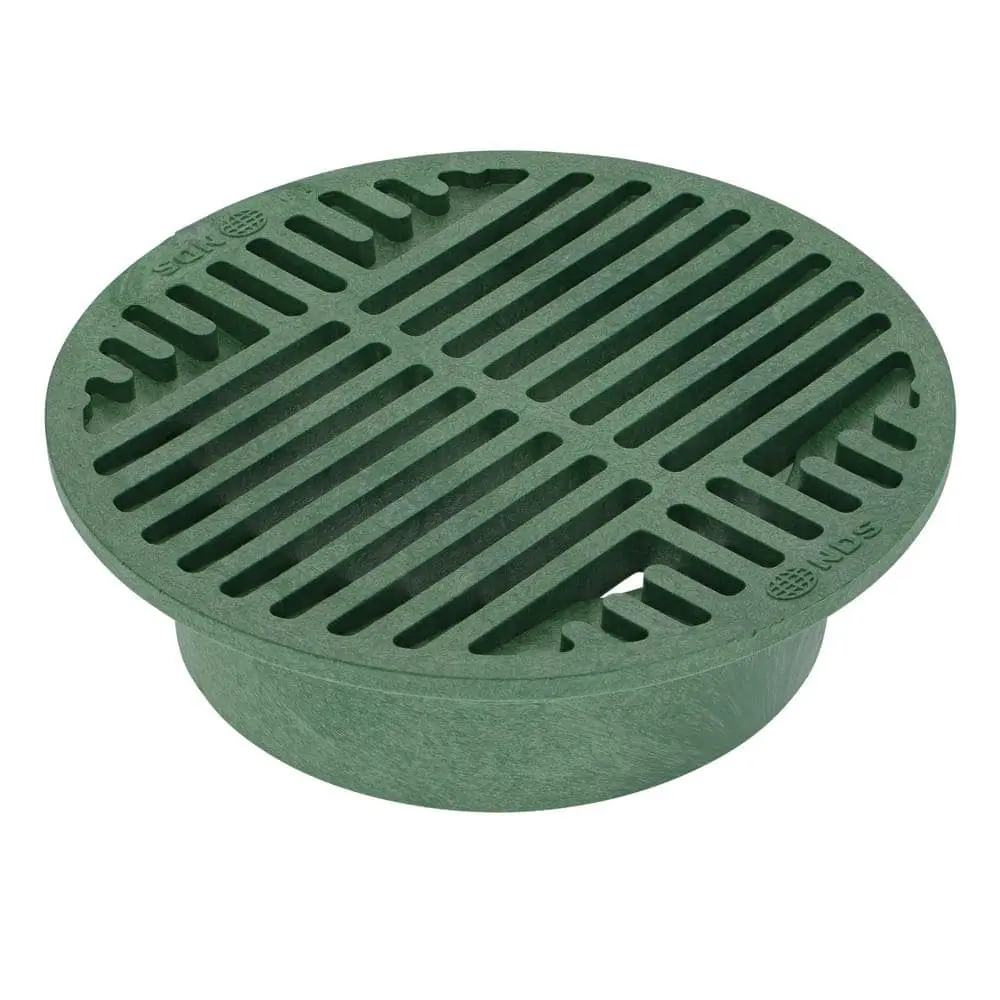

• Grate dimensions: 2-1/2 in. high, 7-3/4 in. wide in diameter (top), 5-3/4 in. wide in diameter (bottom), 5/16 in. wide grate openings
• Available in various colors and materials
• Made of high-density polyethylene (HDPE) with UV inhibitors to prevent fading and cracking

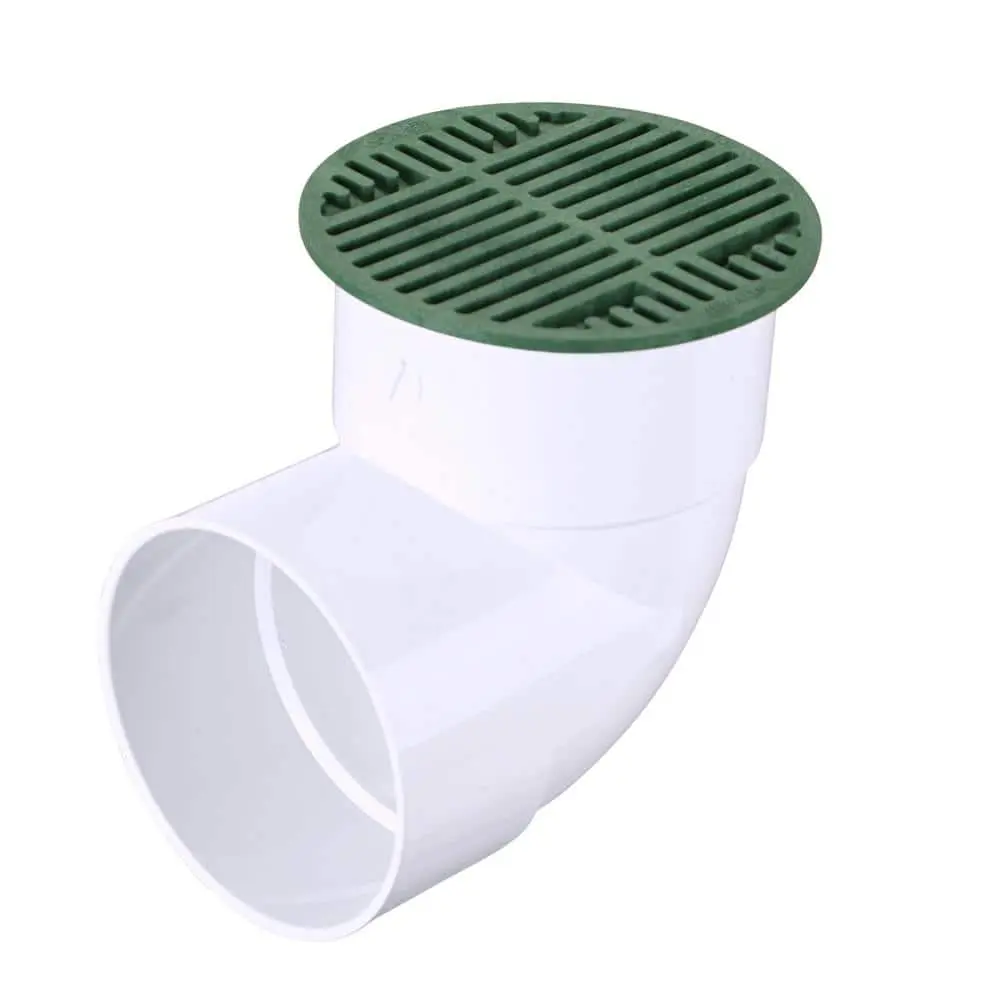

• Compatible with sewer and drain fittings for turns from grate to pipe
• Use with a Pop-Up Drainage Emitter to discharge water downstream
• Use with Flo-Well Dry Well System and EZ Drain Gravel-Free French Drain System to slowly release excess water into the ground
• Onsite stormwater management helps reduce runoff, preventing issues such as erosion, pollution, and flooding
• Founded in 1972, NDS is a trusted leader in stormwater management, providing professionals with reliable products, tools, and support to ensure project success.
