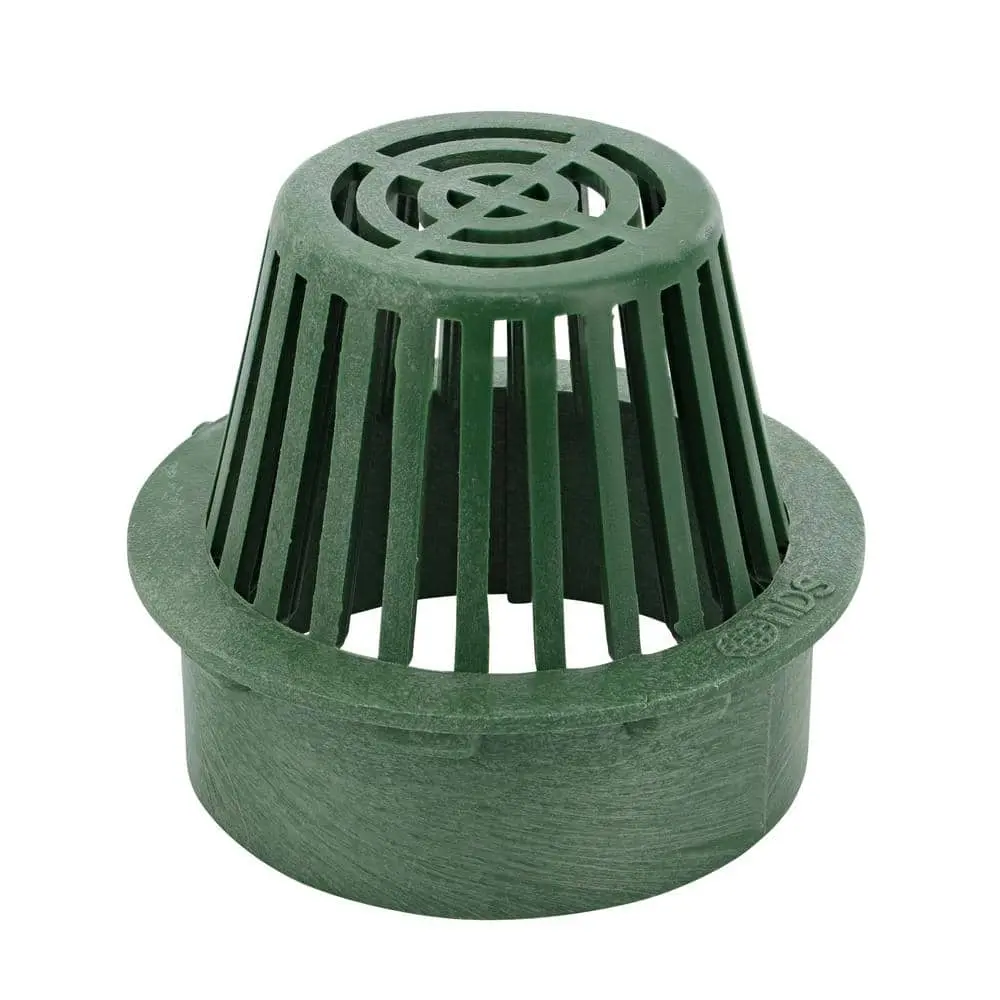

NDS 6 in. Plastic Round Atrium Drainage Grate in Green (80)

About This Product
The 6 in. Atrium Drain Grate is specifically designed to effectively drain areas filled with heavy mulch, while trapping leaves, mulch, and other debris at the base. The raised dome grate allows water to flow through the top into the drain pipe, ensuring proper drainage. Perfect for handling moderate stormwater flows, this grate is ideal for mulched landscape beds, natural areas, and window wells. With a 28 sq. in. open surface area and a flow rate of 87 GPM, it efficiently manages water runoff. The grate connects to the Spee-D Catch Basin Drain, 6 in. sewer and drain pipes, fittings, and 6 in. single-wall corrugated pipes for a secure, soil-tight fit. Constructed from durable polyethylene treated with UV inhibitors, this drain grate resists fading and cracking from sun exposure. It forms part of a comprehensive drainage system that blocks debris while facilitating water flow through the pipes, which direct water to a discharge point such as a pop-up emitter or into the ground through a dry well or infiltration trench.

Highlights

• Prevents debris from entering and clogging the drainage system while allowing excess surface water to flow through
• Ideal for draining moderate water flows from mulched landscape beds, natural areas, and window wells

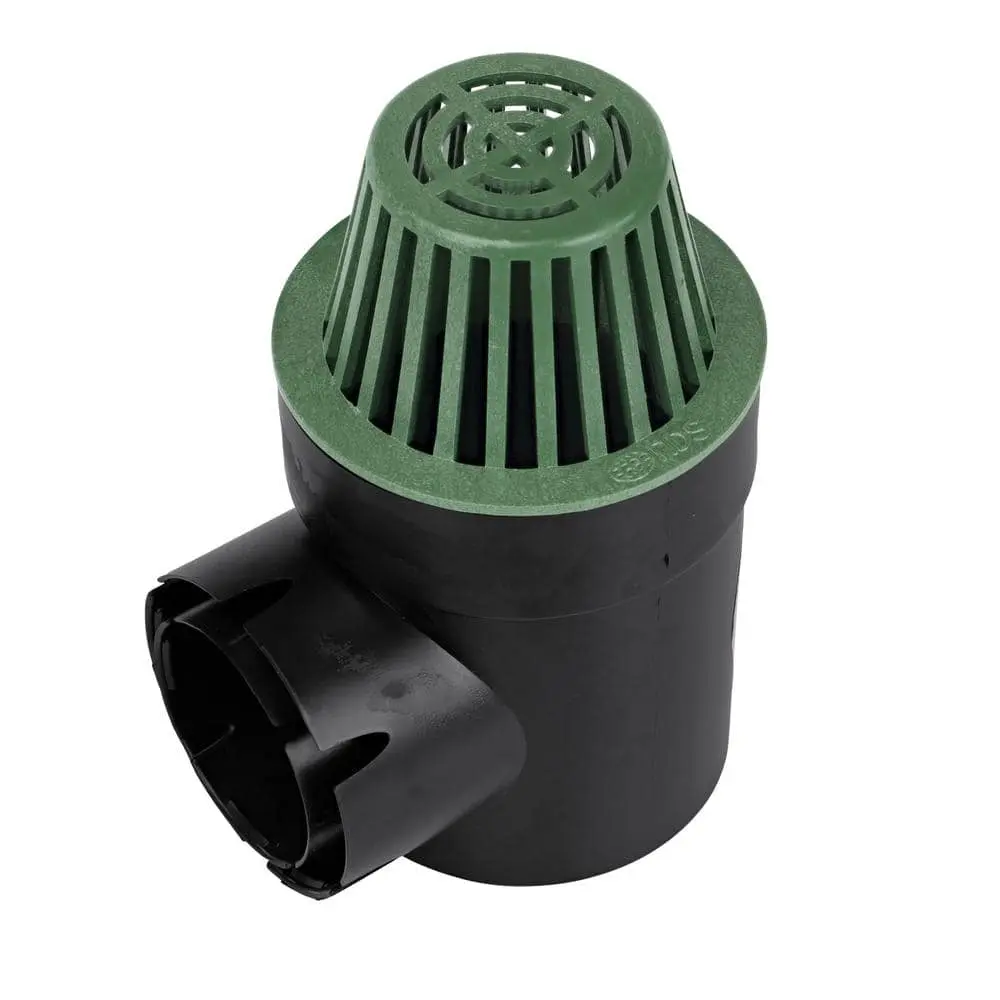

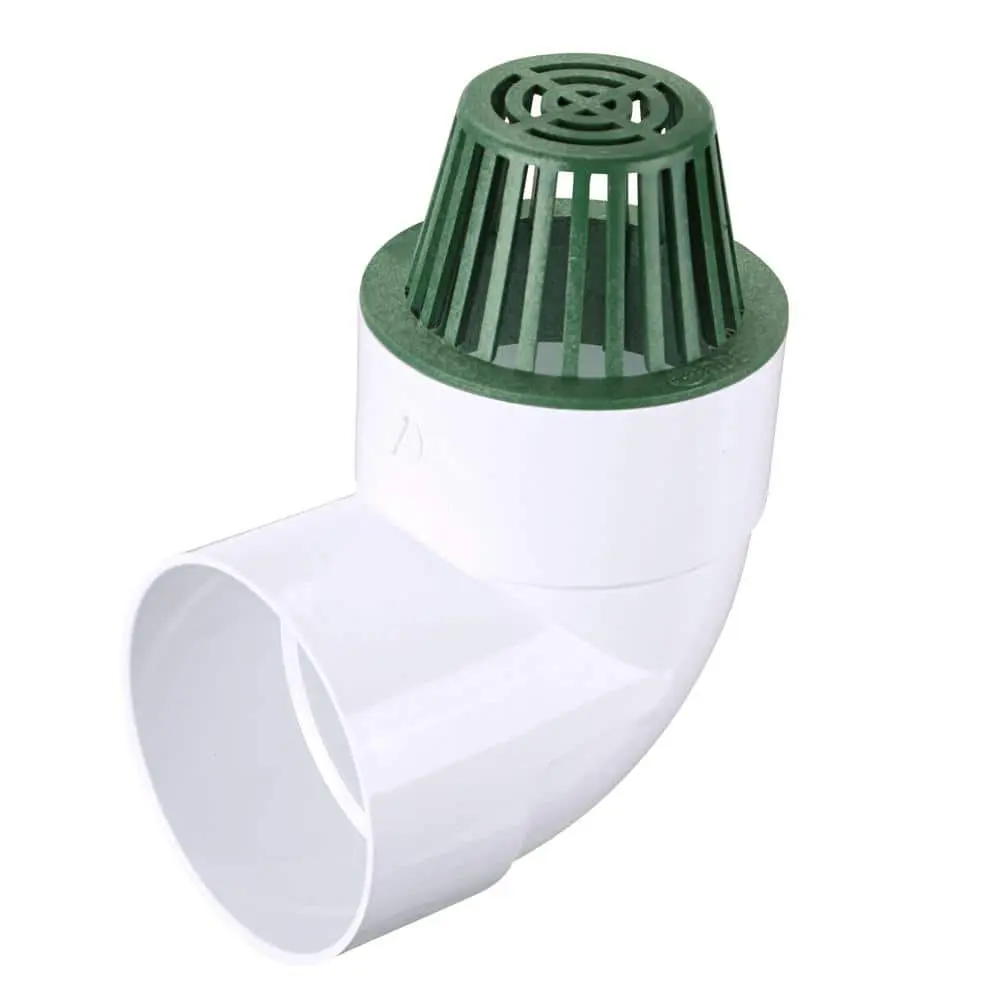

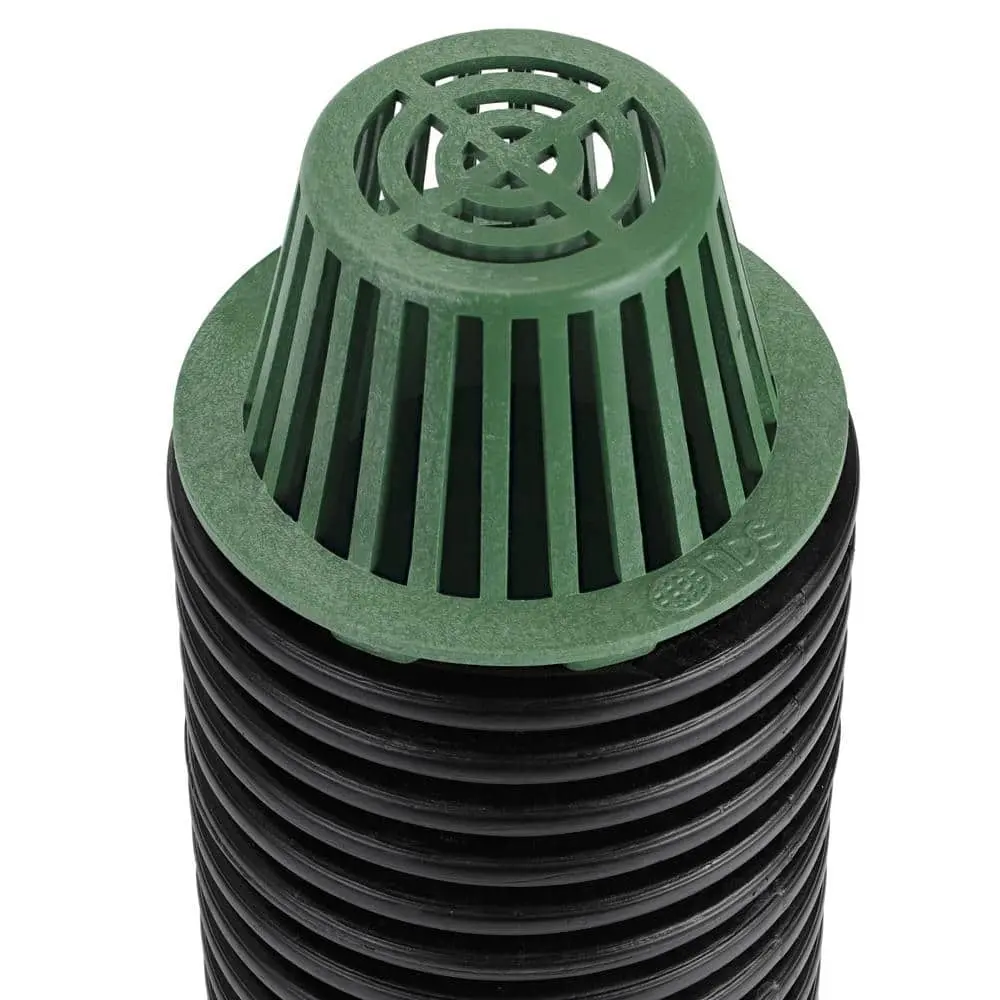

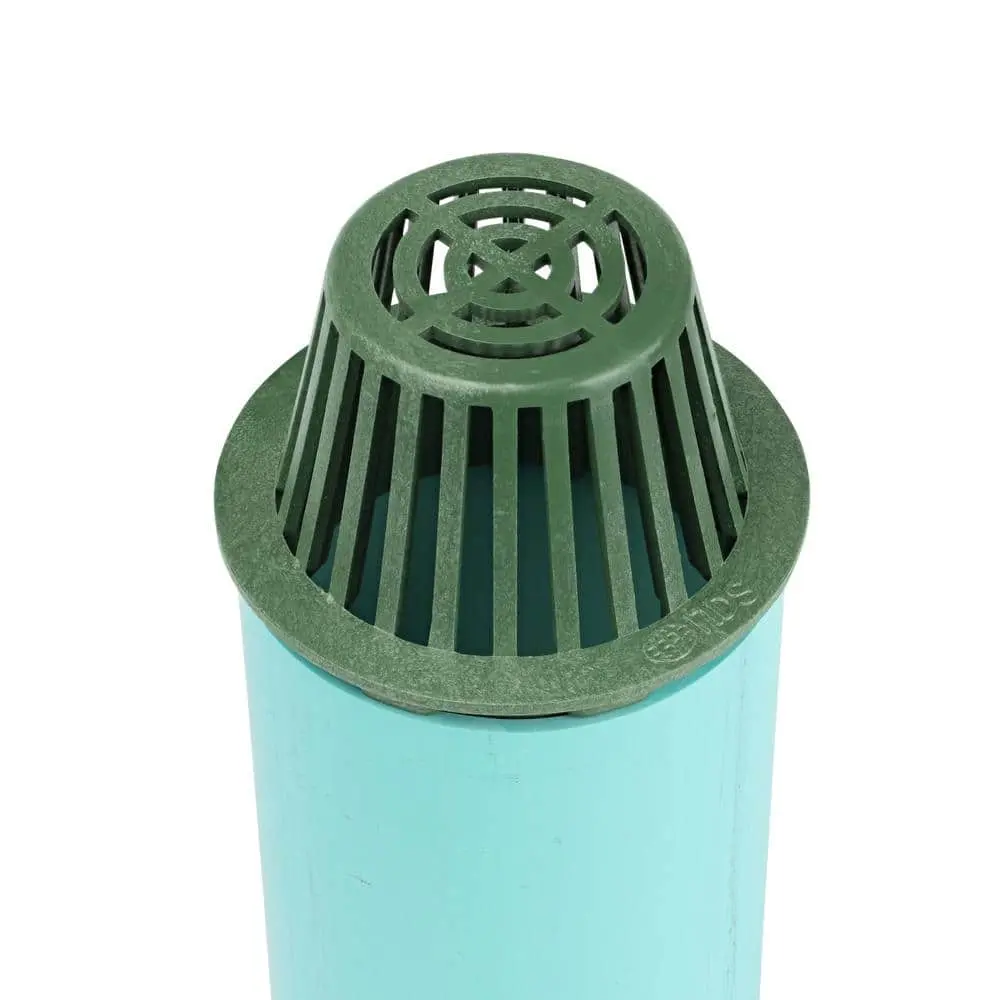

• Fits Spee-D Catch Basin Drain, 6 in. sewer and drain pipes, and 6 in. corrugated pipe
• Open surface area of 28.4 sq. in. with an 87 GPM flow rate
• Designed to allow water to flow freely, even in areas prone to debris accumulation

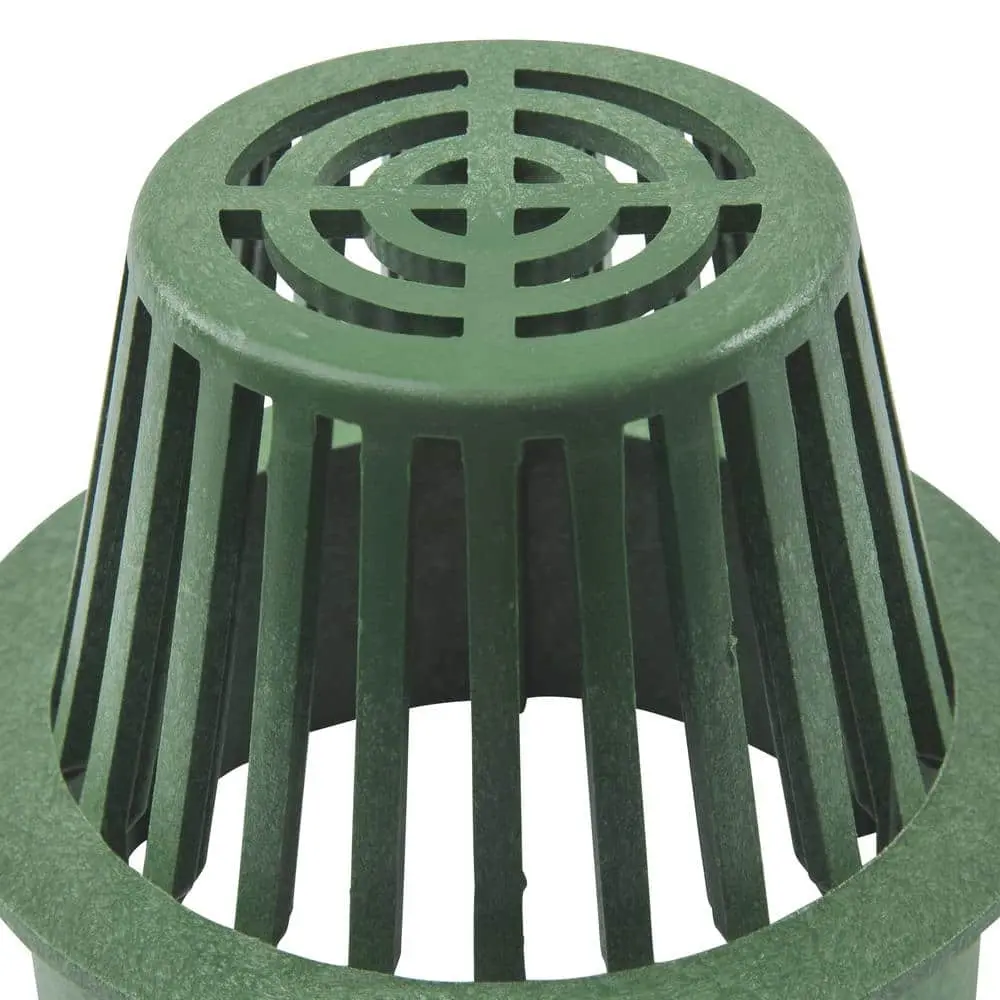

• Grate dimensions: 5-3/4 in. high, 3-7/8 in. diameter, with 1/4 in. wide grate openings
• Available in a variety of colors
• Made of high-density polyethylene (HDPE) with a mix of virgin and recycled content, treated with UV inhibitors for durability
• Use with pop-up drainage emitters to discharge collected water downstream
• Works in combination with Flo-Well Dry Well System and EZ Drain Gravel-Free French Drain System for effective water detention and slow ground release
• Contributes to onsite stormwater management, protecting downstream watersheds and preventing issues like erosion, pollution, and flooding
• NDS, a trusted leader in stormwater management solutions, offers expert tools and support to ensure the success of your project.
