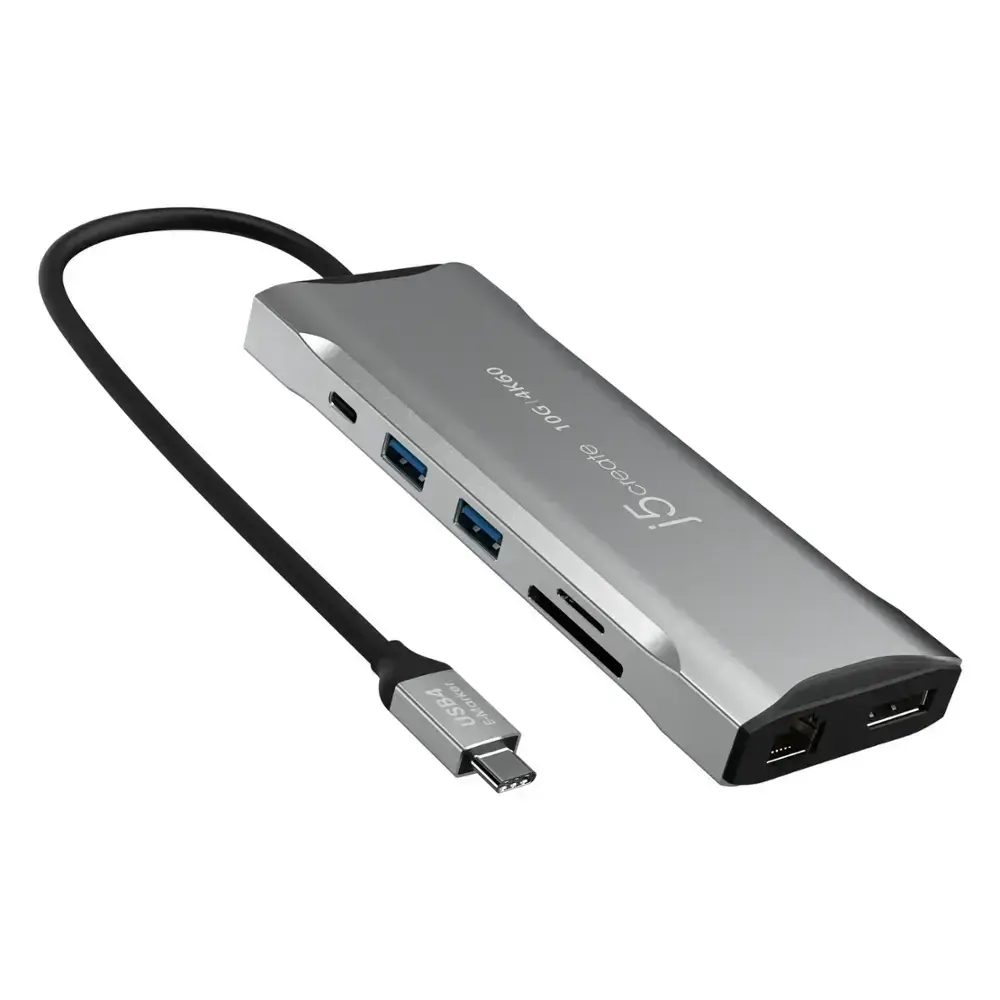

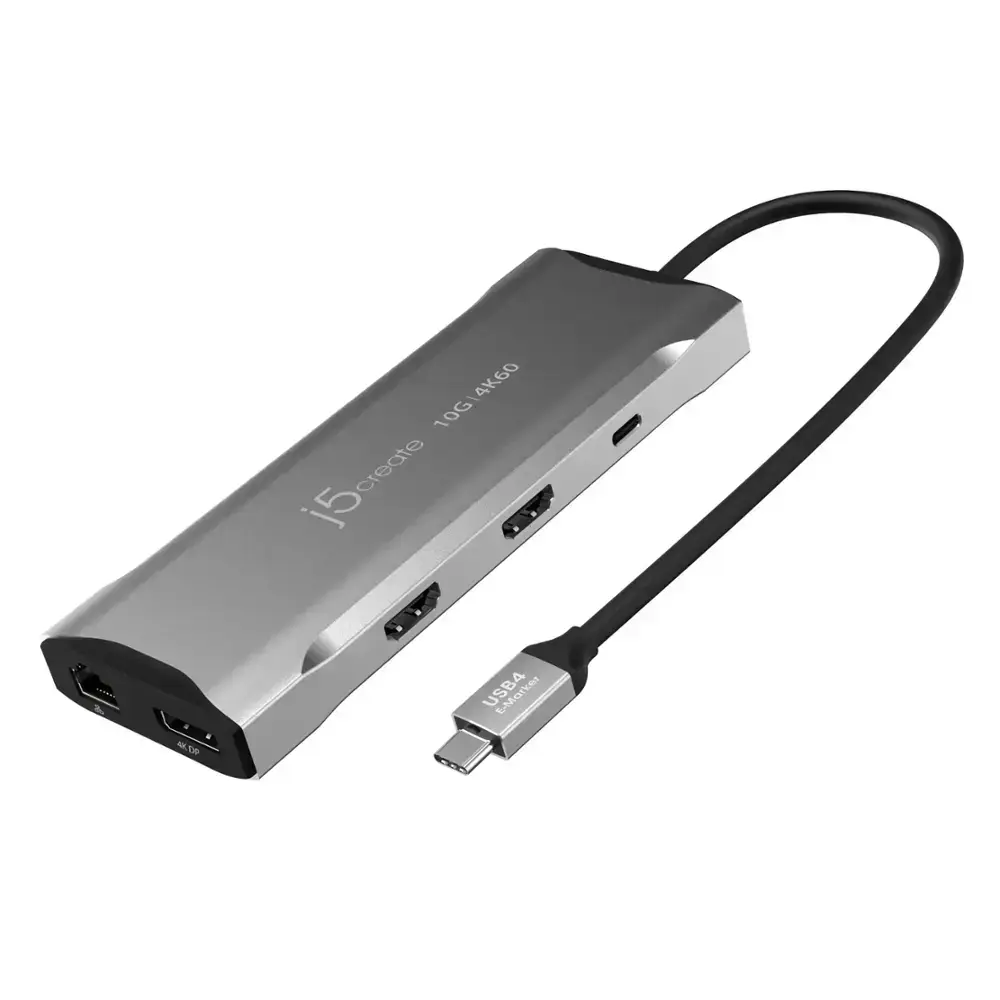

j5create 4K60 USB-C Triple-Monitor Dock- Space Grey

About This Item

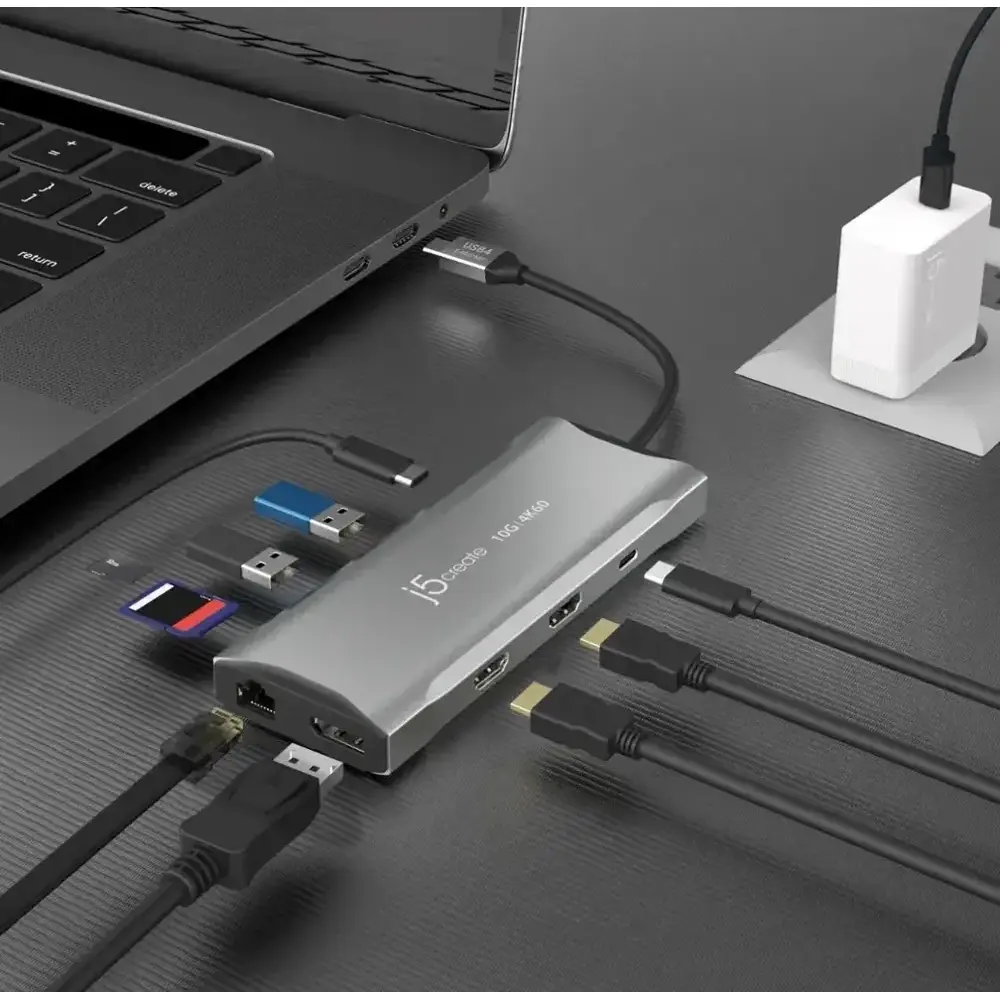

Designed with an advanced USB-C E-Mark chip, this multi-monitor mini dock is fully compatible with USB4 hosts and devices. It offers a complete solution for enhanced productivity, featuring triple video outputs, ultra-fast 10Gbps USB ports, and 100W Power Delivery pass-through charging. Supporting DisplayPort 1.4 and Multi-Stream Transport (MST), this USB-C mini dock enables you to create a dual or triple 4K workstation using two HDMI and one DisplayPort output. It also includes three SuperSpeed 10Gbps USB ports (two USB-C and one USB Type-A) for high-speed data transfer and charging, an SD & microSD 4.0 card reader for easy media management, and a Gigabit Ethernet port for reliable wired networking. Power Delivery 3.0 ensures up to 100W pass-through charging, keeping your connected peripherals powered while charging your USB-C laptop.

Key Features:

• 11-in-1 Connectivity: A comprehensive docking solution designed for maximum efficiency.
• Advanced E-Mark Chip: Integrates USB4, Thunderbolt 3, and Thunderbolt 4 compatibility.
• 4K HDMI & DisplayPort Outputs: Supports up to 4K@60Hz when using a single port; up to 4K@30Hz with triple display output.
• Triple 4K Display Support: Enables dual or triple 4K external displays on compatible USB-C laptops with DisplayPort 1.4 and MST support.
• High-Refresh Rate Gaming Support: Delivers smooth gaming with 144Hz at 1440p (QHD) via HDMI or 1920x1080@240Hz via DisplayPort.
• SuperSpeed 10Gbps USB Ports: Includes one USB-C and two USB-A ports for high-speed data transfer and charging.

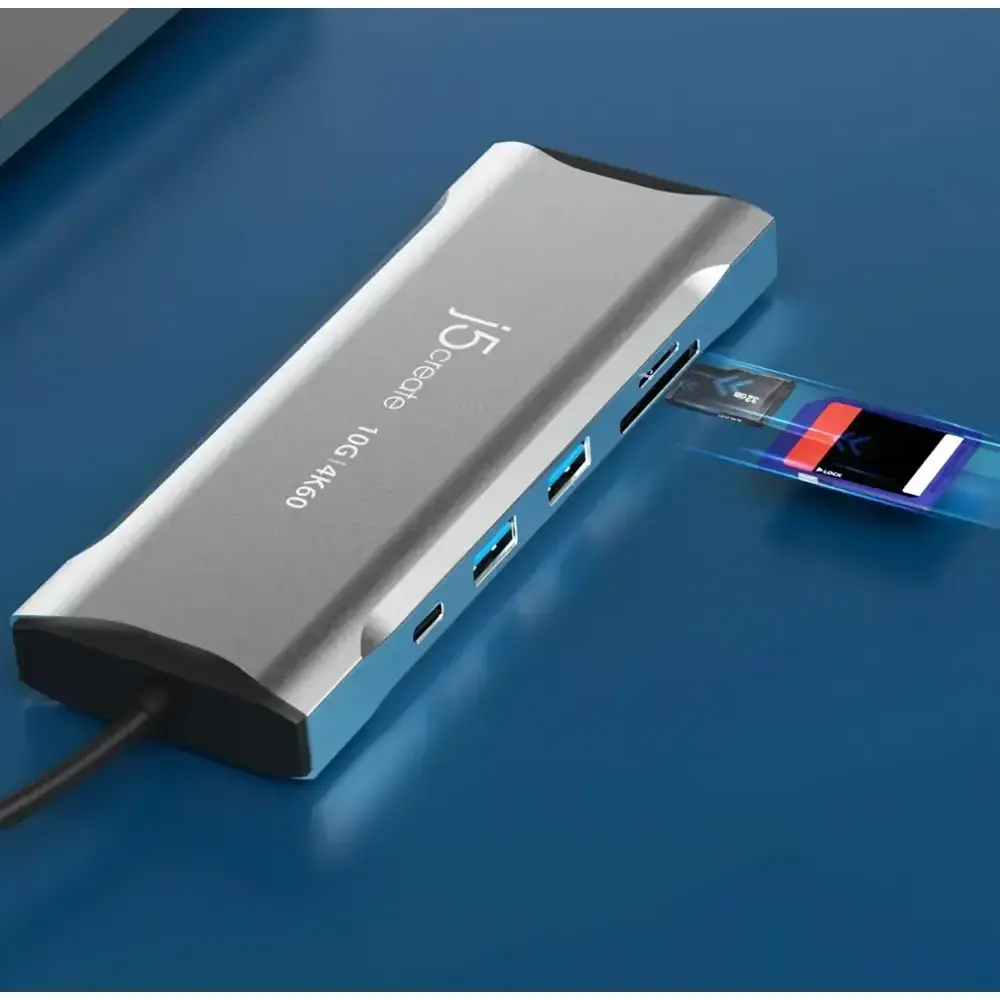

• SD & microSD 4.0 Card Reader: Supports external memory access up to 2TB, with UHS-II speeds up to 312MB/s.

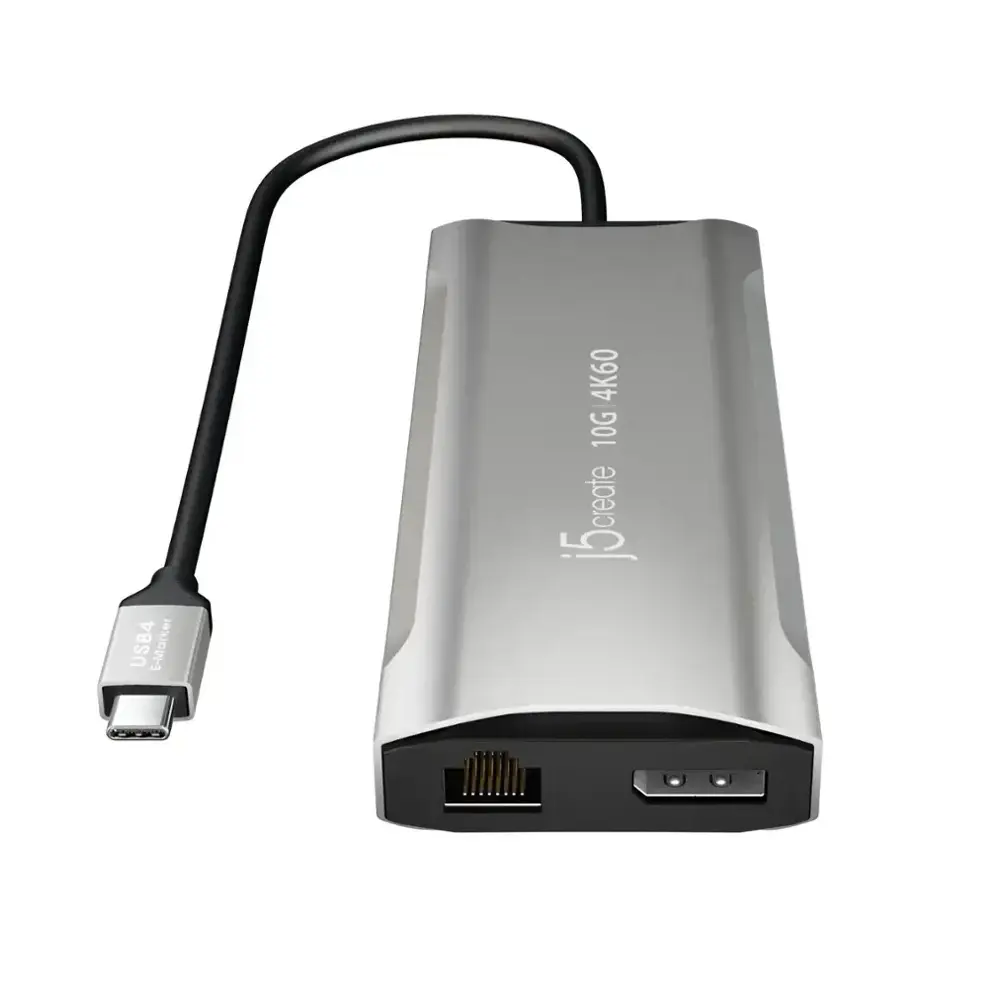

• Gigabit Ethernet Port: Ensures fast and stable wired network connectivity.
• Plug & Play Setup: Ready to use instantly—no driver installation required.

Note: Multiple display functionality is supported only on Windows. On macOS, extended displays will mirror the primary screen. The number of external displays and supported resolution depend on the GPU performance of the connected device.

What's Included:

• 1x JCD397 4K60 Elite USB-C Triple-Monitor 10Gbps Mini Dock
• 1x Quick Installation Guide (QIG)
